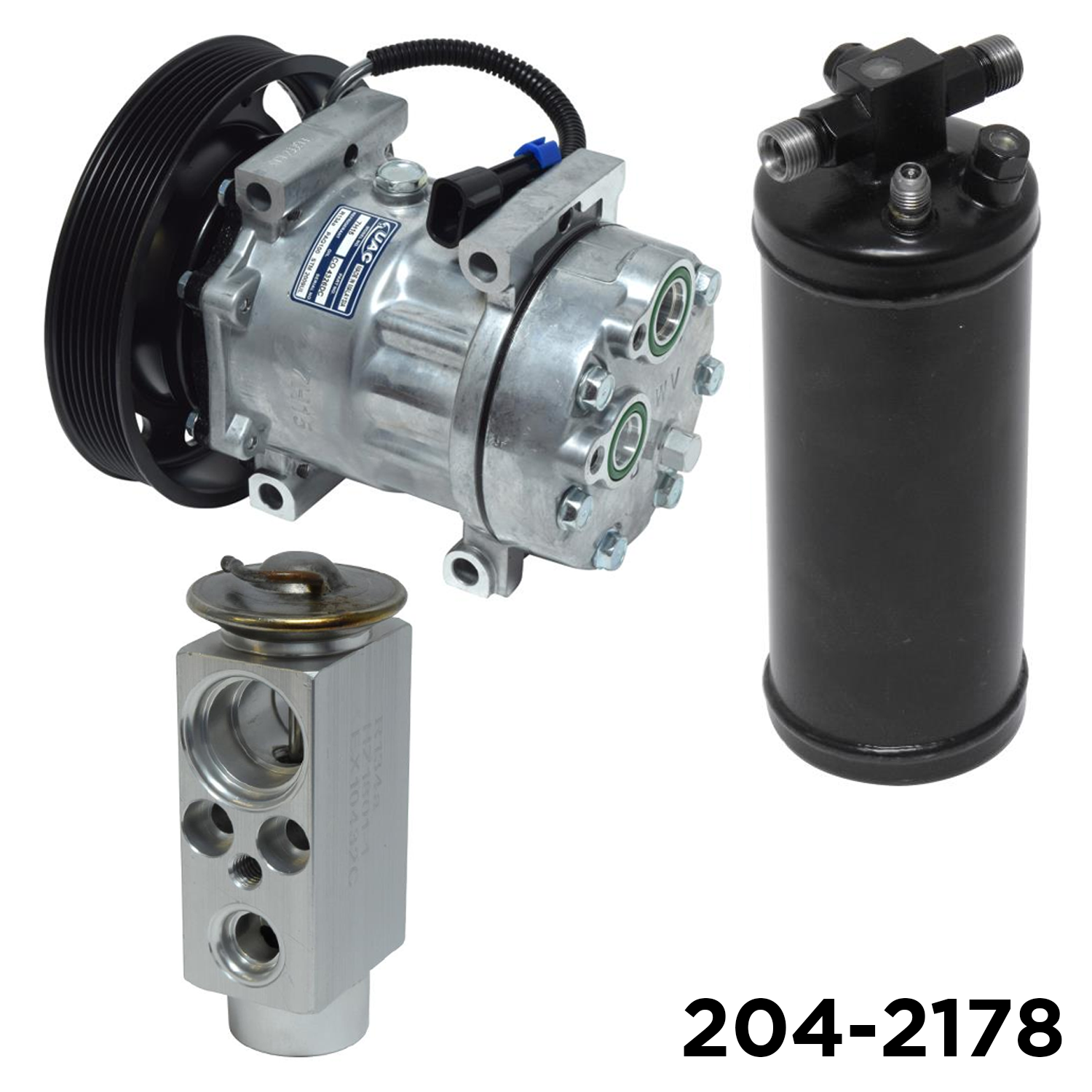

Short Compressor Kit

Specs

Specifications

• KIT: COMPRESSORS: 204-13956
• KIT: ACCUMULATORS/DRIERS: 207-5541
• KIT: EXP VALVES/ORIF TUBE: 208-2001
• {COMPRESSORS}: Clocking: 12
• {COMPRESSORS}: Voltage: 12
• {COMPRESSORS}: Discharge Port (mm): 14.55
• {EXP VALVES/ORIF TUBE}: Suction Inlet (mm): 16
• {COMPRESSORS}: Suction Port (mm): 17.7
• {COMPRESSORS}: Pulley Diameter (mm): 176
• {COMPRESSORS}: Wire Qty: 2 Wire Female Packard 15300002
• {ACCUMULATORS/DRIERS}: Can Length (mm): 255
• {COMPRESSORS}: Gauge Line (mm): 31.63
• {ACCUMULATORS/DRIERS}: Service Port Size: 45661
• {ACCUMULATORS/DRIERS}: Port Size (mm): 6.35
• {ACCUMULATORS/DRIERS}: Service Port Thread Size: 7/16-20?
• {ACCUMULATORS/DRIERS}: Diameter (mm): 75
• {COMPRESSORS}: Grooves: 8
• {COMPRESSORS}: Rotation: CW
• {ACCUMULATORS/DRIERS}: Outlet Fitting: Male Insert O-Ring
• {COMPRESSORS}: Control Valve (Y/ N): N
• {ACCUMULATORS/DRIERS}: Inlet Size: No.6
• {ACCUMULATORS/DRIERS}: Outlet Size: No.6
• {COMPRESSORS}: Refrigerant: R134A
• {COMPRESSORS}: Compressor Type: SD7H15
• {COMPRESSORS}: Cylinder Head: WV
• {ACCUMULATORS/DRIERS}: Moisture Indicator (Y/ N): Y
• {ACCUMULATORS/DRIERS}: PRV (Y/ N): Y
• {ACCUMULATORS/DRIERS}: Service Port (Y/ N): Y
• {COMPRESSORS}: Diode (Y/ N): Y
