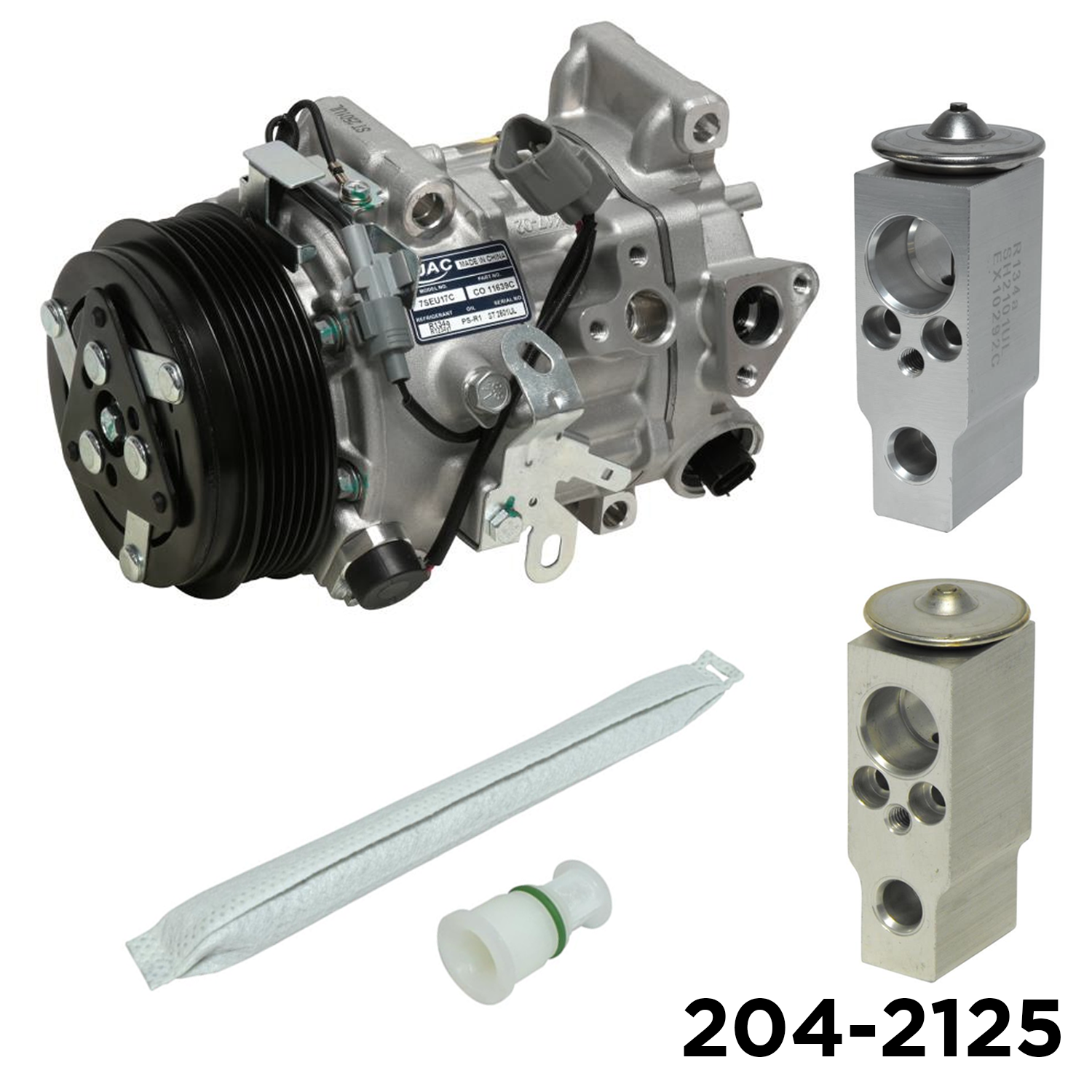

Short Compressor Kit


Short Compressor Kit

$440.04

SKU: 204-2125 Category:


Additional information

Weight 21 lbs
Dimensions 19 × 13 × 16 in
Year Make Model Submodel Engine
Year Make Model Submodel Engine
Loading...

Specs

Specifications

  • KIT: COMPRESSORS: 204-4250
  • KIT: ACCUMULATORS/DRIERS: 207-1266
  • KIT: EXP VALVES/ORIF TUBE: 208-534
  • KIT: EXP VALVES/ORIF TUBE: 208-6079
  • {EXP VALVES/ORIF TUBE}: Superheat: 0.135 ± 0.015 MPa
  • {EXP VALVES/ORIF TUBE}: Tonnage: 1
  • {EXP VALVES/ORIF TUBE}: Tonnage: 1.5 T
  • {EXP VALVES/ORIF TUBE}: Liquid Inlet (mm): 10
  • {EXP VALVES/ORIF TUBE}: Liquid Inlet Fitting Threa: 10
  • {EXP VALVES/ORIF TUBE}: Inlet (mm): 10.5
  • {EXP VALVES/ORIF TUBE}: Liquid Inlet (mm): 10.5
  • {COMPRESSORS}: Pulley Diameter (mm): 119
  • {COMPRESSORS}: Voltage: 12
  • {EXP VALVES/ORIF TUBE}: Liquid Outlet (mm): 15.5
  • {EXP VALVES/ORIF TUBE}: Liquid Outlet (mm): 16
  • {EXP VALVES/ORIF TUBE}: Liquid Outlet Fitting Thre: 16
  • {EXP VALVES/ORIF TUBE}: Suction Inlet (mm): 18
  • {EXP VALVES/ORIF TUBE}: Suction Outlet (mm): 18
  • {EXP VALVES/ORIF TUBE}: Suction Inlet Fitting Thre: 18
  • {EXP VALVES/ORIF TUBE}: Suction Outlet Fitting Thr: 18
  • {EXP VALVES/ORIF TUBE}: Suction Inlet (mm): 18.3
  • {EXP VALVES/ORIF TUBE}: Suction Outlet (mm): 18.3
  • {EXP VALVES/ORIF TUBE}: Mounting Hole Quantity: 2
  • {ACCUMULATORS/DRIERS}: Bag Diameter (mm): 20
  • {ACCUMULATORS/DRIERS}: Length (mm): 225
  • {ACCUMULATORS/DRIERS}: Bag Length (mm): 235
  • {EXP VALVES/ORIF TUBE}: Width (mm): 25.6
  • {ACCUMULATORS/DRIERS}: Width (mm): 32
  • {ACCUMULATORS/DRIERS}: Diameter (mm): 35
  • {ACCUMULATORS/DRIERS}: Bag Weight (g): 52
  • {COMPRESSORS}: Grooves: 6
  • {COMPRESSORS}: Compressor Type: 7SAS17C
  • {EXP VALVES/ORIF TUBE}: Length (mm): 83
  • {EXP VALVES/ORIF TUBE}: Mounting Hole Diameter: 9
  • {EXP VALVES/ORIF TUBE}: Type: Block
  • {EXP VALVES/ORIF TUBE}: Liquid Inlet Fitting Gende: Female
  • {EXP VALVES/ORIF TUBE}: Liquid Outlet Fitting Gend: Female
  • {EXP VALVES/ORIF TUBE}: Suction Inlet Fitting Gend: Female
  • {EXP VALVES/ORIF TUBE}: Suction Outlet Fitting Gen: Female
  • {EXP VALVES/ORIF TUBE}: Refrigerant Type: HFC-134A
  • {EXP VALVES/ORIF TUBE}: Max Operating Pressure: High 5.3 MPa / Low 2.2 MPa
  • {ACCUMULATORS/DRIERS}: Thread Size: M25 X 1.5
  • {ACCUMULATORS/DRIERS}: Inlet Fitting Thread Diamet: M25 X 1.5
  • {ACCUMULATORS/DRIERS}: Drier Port Gender: Male
  • {EXP VALVES/ORIF TUBE}: Liquid Inlet Style: Male O-Ring
  • {EXP VALVES/ORIF TUBE}: Liquid Outlet Style: Male O-Ring
  • {EXP VALVES/ORIF TUBE}: Liquid Inlet Thread Type: medium
  • {EXP VALVES/ORIF TUBE}: Liquid Outlet Thread Type: medium
  • {EXP VALVES/ORIF TUBE}: Suction Inlet Thread Type: medium
  • {EXP VALVES/ORIF TUBE}: Suction Outlet Thread Type: medium
  • {ACCUMULATORS/DRIERS}: Moisture Indicator Window: No
  • {ACCUMULATORS/DRIERS}: Mounting Bracket Included: No
  • {ACCUMULATORS/DRIERS}: Mounting Hardware Included: No
  • {COMPRESSORS}: Refrigerant: R-134a or R1234yf
  • {EXP VALVES/ORIF TUBE}: Color: Silver
  • {EXP VALVES/ORIF TUBE}: Material Type: Steel
  • {ACCUMULATORS/DRIERS}: Desiccant Replaceable: Yes
