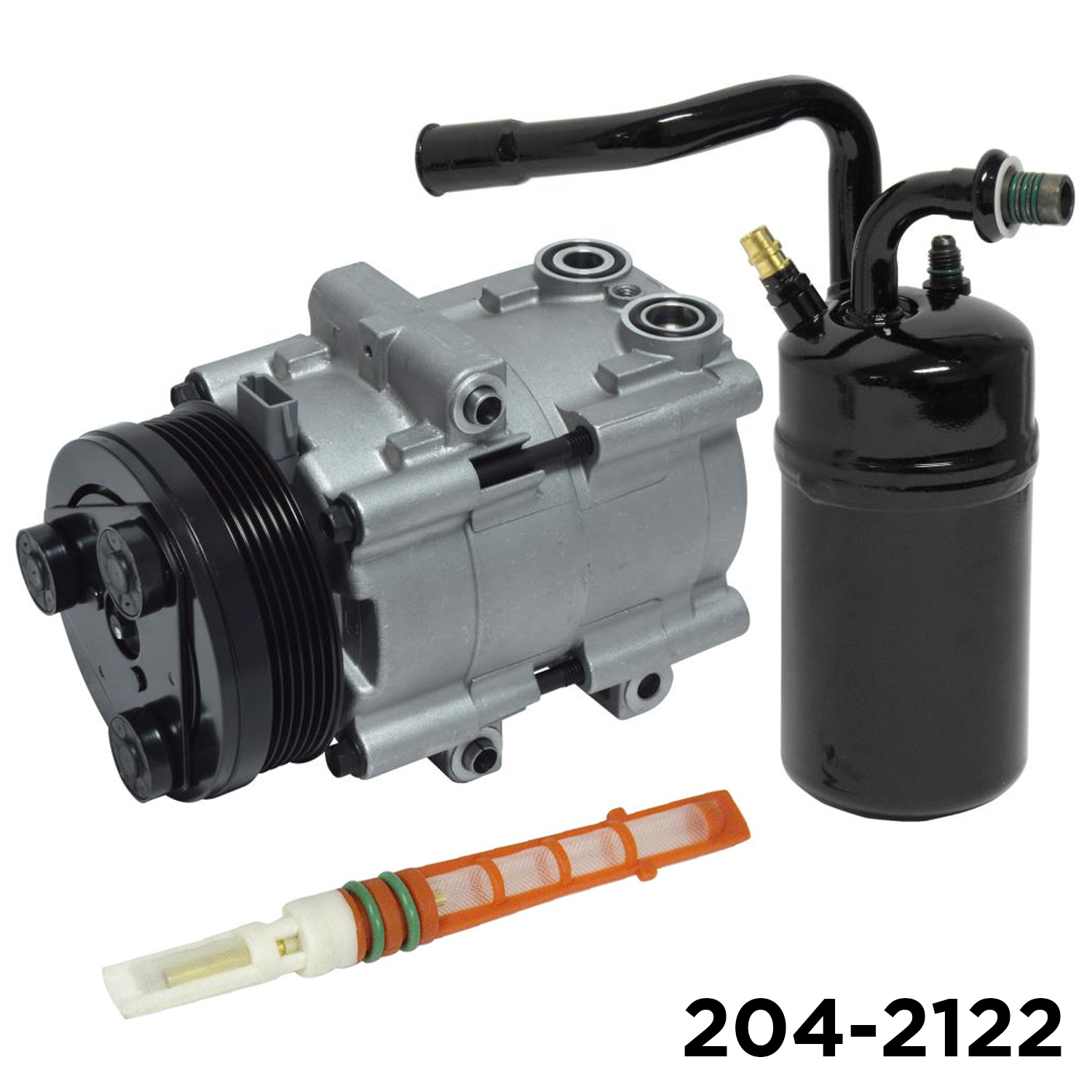

Short Compressor Kit

Specs

Specifications

• KIT: COMPRESSORS: 204-1024
• KIT: ACCUMULATORS/DRIERS: 207-8178
• KIT: EXP VALVES/ORIF TUBE: 208-699-1
• {EXP VALVES/ORIF TUBE}: Tube Outside Diameter: 10.8
• {COMPRESSORS}: Pulley Diameter (mm): 114
• {COMPRESSORS}: Voltage: 12
• {EXP VALVES/ORIF TUBE}: Screen Micron Rating: 120
• {ACCUMULATORS/DRIERS}: Inlet (mm): 17
• {COMPRESSORS}: Suction Port Diameter (mm): 17
• {ACCUMULATORS/DRIERS}: Height (mm): 176
• {ACCUMULATORS/DRIERS}: Outlet (mm): 21
• {COMPRESSORS}: Belt Width (mm): 22
• {COMPRESSORS}: Hub Type: 3 Eye
• {COMPRESSORS}: Grooves: 6
• {ACCUMULATORS/DRIERS}: Diameter (mm): 89
• {EXP VALVES/ORIF TUBE}: Length (mm): 89.5
• {COMPRESSORS}: Material Type: Aluminum
• {COMPRESSORS}: Connector Type: Female
• {COMPRESSORS}: Compressor Type: FS10
• {ACCUMULATORS/DRIERS}: Sight Glass (Y/ N): N
• {COMPRESSORS}: Switch Included: No
• {COMPRESSORS}: Compatible Refrigerant Oil Type: PAG 46
• {EXP VALVES/ORIF TUBE}: Material Type: plastic/ cloth
• {COMPRESSORS}: Refrigerant Type: R134A
• {COMPRESSORS}: Pulley Belt Type: Serpentine
• {COMPRESSORS}: Mount Type: Tangent
• {COMPRESSORS}: Clutch Included: Yes
• {COMPRESSORS}: Oil Filled: Yes
