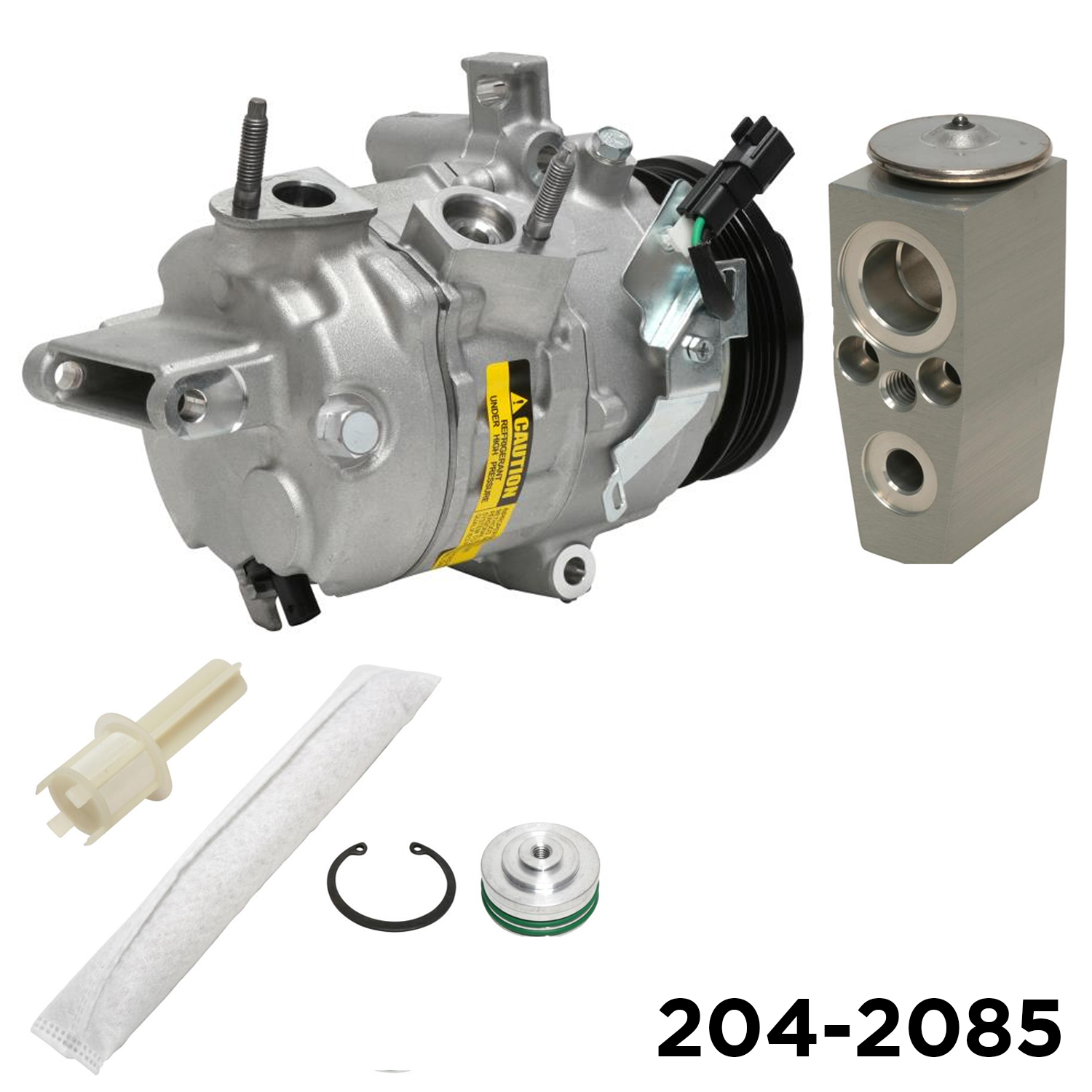

Short Compressor Kit

Specs

Specifications

• KIT: COMPRESSORS: 204-14077
• KIT: ACCUMULATORS/DRIERS: 207-5258
• KIT: EXP VALVES/ORIF TUBE: 208-6139
• {COMPRESSORS}: Pulley Diameter (mm): 110
• {COMPRESSORS}: Voltage: 12
• {EXP VALVES/ORIF TUBE}: Superheat: 12
• {EXP VALVES/ORIF TUBE}: Liquid Inlet (mm): 16.5
• {COMPRESSORS}: Discharge Port (mm): 18.5
• {EXP VALVES/ORIF TUBE}: Liquid Outlet (mm): 19.5
• {ACCUMULATORS/DRIERS}: Length (mm): 225
• {COMPRESSORS}: Suction Port (mm): 23
• {EXP VALVES/ORIF TUBE}: Suction Inlet (mm): 25
• {EXP VALVES/ORIF TUBE}: Suction Outlet (mm): 26
• {ACCUMULATORS/DRIERS}: Bag Diameter (mm): 28
• {ACCUMULATORS/DRIERS}: Diameter (mm): 28
• {COMPRESSORS}: Grooves: 4
• {COMPRESSORS}: Gauge Line (mm): 66
• {COMPRESSORS}: Compressor Type: 7SAS17C
• {COMPRESSORS}: Clocking: 9
• {ACCUMULATORS/DRIERS}: Material Type: cloth
• {ACCUMULATORS/DRIERS}: Drier Port Gender: Female
• {ACCUMULATORS/DRIERS}: Mounting Bracket Included: No
• {COMPRESSORS}: Refrigerant: R-134a or R1234yf
• {COMPRESSORS}: Control Valve (Y/ N): Y
• {COMPRESSORS}: Diode (Y/ N): Y
• {ACCUMULATORS/DRIERS}: Desiccant Replaceable: Yes
• {ACCUMULATORS/DRIERS}: Mounting Hardware Included: Yes
