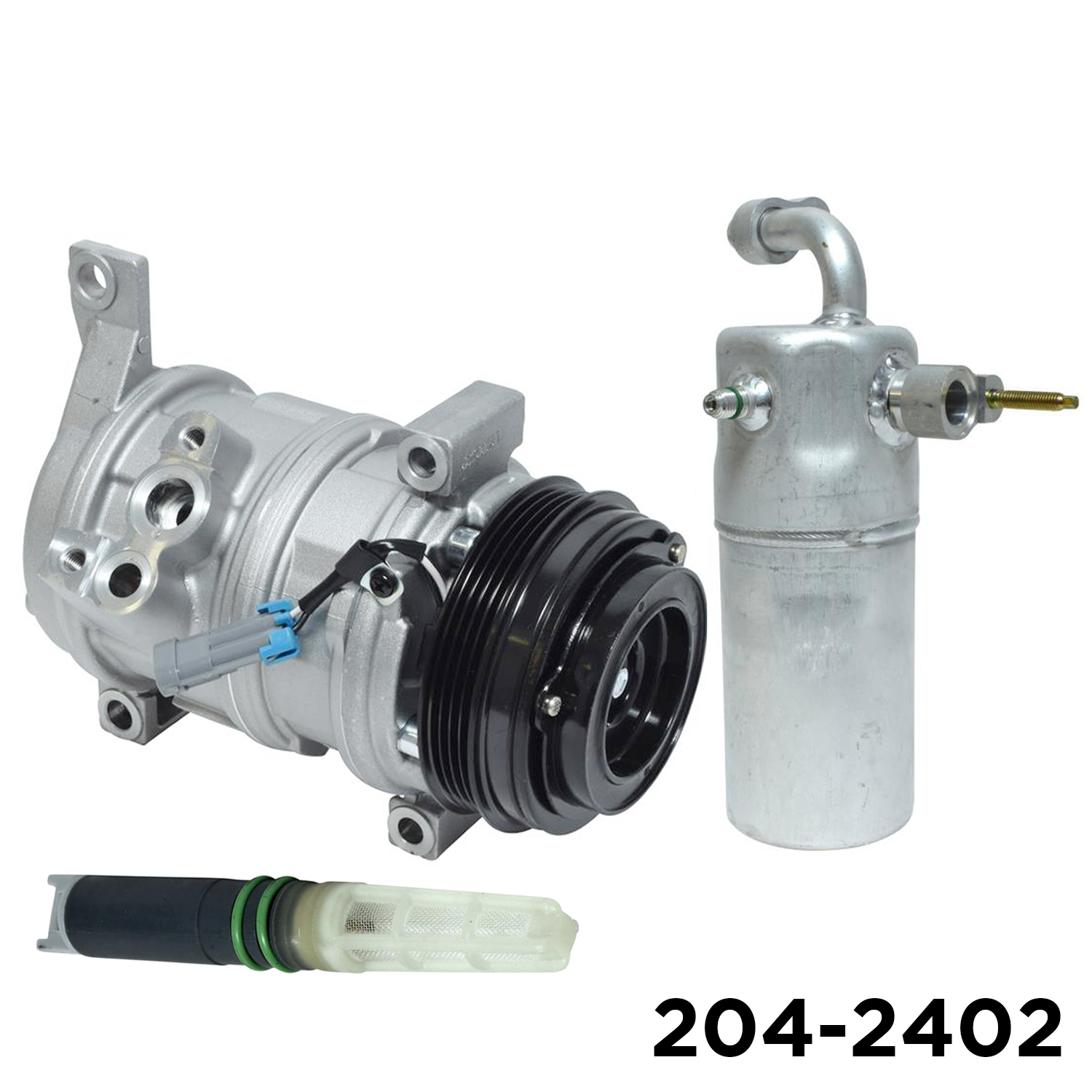

Short Compressor Kit

Specs

Specifications

• KIT: COMPRESSORS: 204-1517
• KIT: ACCUMULATORS/DRIERS: 207-1171
• KIT: EXP VALVES/ORIF TUBE: 208-703-1
• {COMPRESSORS}: Wire Qty: 1
• {COMPRESSORS}: Connector Quantity: 1
• {COMPRESSORS}: Mounting Flange Thickness: 10
• {EXP VALVES/ORIF TUBE}: Diameter (mm): 10.5
• {EXP VALVES/ORIF TUBE}: Length (mm): 100
• {COMPRESSORS}: Compressor Type: 10S20F
• {COMPRESSORS}: Discharge Port (mm): 11
• {COMPRESSORS}: Pulley Diameter (mm): 110
• {COMPRESSORS}: Clutch Maximum Diameter: 110
• {COMPRESSORS}: Pulley Outside Diameter: 110
• {COMPRESSORS}: Coil Clock Position: 12
• {COMPRESSORS}: Coil Voltage: 12
• {COMPRESSORS}: Distance Between Mounting Holes: 126
• {EXP VALVES/ORIF TUBE}: Tube Outside Diameter: 13.45 mm
• {COMPRESSORS}: Wire Gauge Measurement: 130
• {COMPRESSORS}: Pulley Lip Diameter: 138
• {COMPRESSORS}: Casing Outside Diameter: 161.5
• {COMPRESSORS}: Connector Terminal Qty: 2
• {COMPRESSORS}: Terminal Qty: 2
• {COMPRESSORS}: Suction Port Inside Diameter: 26.3
• {ACCUMULATORS/DRIERS}: Length (mm): 290
• {COMPRESSORS}: Pulley Ridge Diameter: 3.16
• {COMPRESSORS}: Grooves: 4
• {COMPRESSORS}: Mounting Hole Quantity: 4
• {COMPRESSORS}: Pulley Groove Quantity: 4
• {EXP VALVES/ORIF TUBE}: Inner Diameter (mm): 7.5
• {EXP VALVES/ORIF TUBE}: Screen Micron Rating: 72 micron
• {COMPRESSORS}: Distance From Clutch To Mounting Fl: 72.5
• {COMPRESSORS}: Discharge Port Inside Diameter: 8
• {COMPRESSORS}: Rotation: A Direction
• {EXP VALVES/ORIF TUBE}: Color: Dark
• {COMPRESSORS}: Voltage: DC 12V
• {COMPRESSORS}: Hub Type: DENSO
• {COMPRESSORS}: Compressor Mount: EAR MOUNT
• {COMPRESSORS}: Refrigerant: HFC-134A
• {COMPRESSORS}: Refrigerant Type: HFC-134A
• {COMPRESSORS}: Connector Gender: Male
• {COMPRESSORS}: Switch Included: No
• {COMPRESSORS}: Oil Filled: PAG 46
• {COMPRESSORS}: Compatible Refrigerant Oil Type: PAG-180
• {EXP VALVES/ORIF TUBE}: Material Type: plastic/ cloth
• {EXP VALVES/ORIF TUBE}: Refrigerant Type: R-134A
• {COMPRESSORS}: Connector Shape: Round
• {COMPRESSORS}: Pulley Belt Type: Serpentine
• {COMPRESSORS}: Terminal Type: Spade
• {COMPRESSORS}: Mounting Type: Tangent
• {COMPRESSORS}: Clutch Included: Yes
