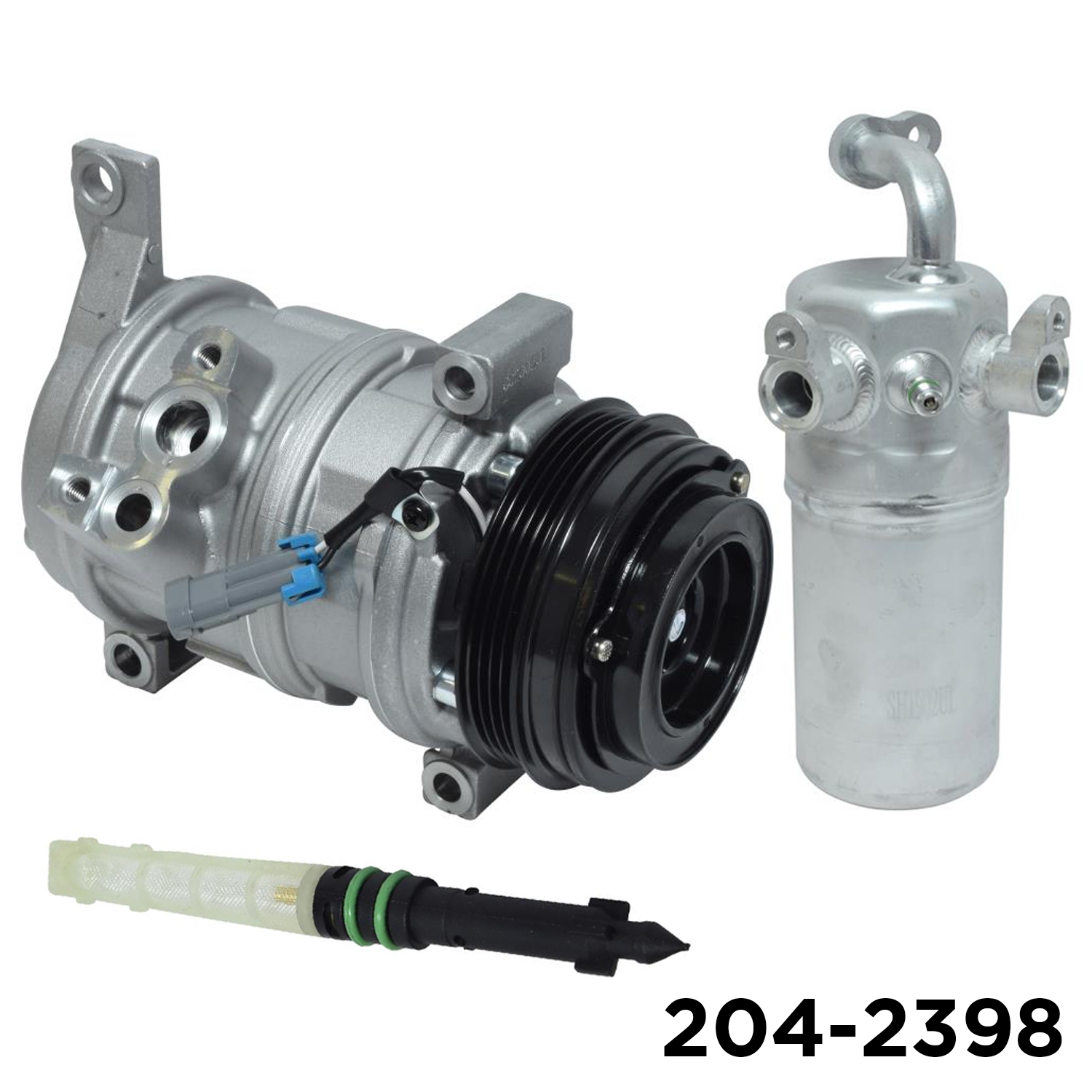

Short Compressor Kit


Short Compressor Kit

$301.28

SKU: 204-2398 Category:


Additional information

Weight 21 lbs
Dimensions 19 × 13 × 16 in

Specs

Specifications

  • KIT: COMPRESSORS: 204-1517
  • KIT: ACCUMULATORS/DRIERS: 207-8161
  • KIT: EXP VALVES/ORIF TUBE: 208-706-1
  • {COMPRESSORS}: Wire Qty: 1
  • {COMPRESSORS}: Connector Quantity: 1
  • {EXP VALVES/ORIF TUBE}: Tube Outside Diameter: 1.8
  • {COMPRESSORS}: Mounting Flange Thickness: 10
  • {COMPRESSORS}: Compressor Type: 10S20F
  • {COMPRESSORS}: Discharge Port (mm): 11
  • {COMPRESSORS}: Pulley Diameter (mm): 110
  • {COMPRESSORS}: Clutch Maximum Diameter: 110
  • {COMPRESSORS}: Pulley Outside Diameter: 110
  • {COMPRESSORS}: Coil Clock Position: 12
  • {COMPRESSORS}: Coil Voltage: 12
  • {COMPRESSORS}: Distance Between Mounting Holes: 126
  • {COMPRESSORS}: Wire Gauge Measurement: 130
  • {COMPRESSORS}: Pulley Lip Diameter: 138
  • {COMPRESSORS}: Casing Outside Diameter: 161.5
  • {COMPRESSORS}: Connector Terminal Qty: 2
  • {COMPRESSORS}: Terminal Qty: 2
  • {ACCUMULATORS/DRIERS}: Height (mm): 225
  • {ACCUMULATORS/DRIERS}: Inlet (mm): 26
  • {COMPRESSORS}: Suction Port Inside Diameter: 26.3
  • {COMPRESSORS}: Pulley Ridge Diameter: 3.16
  • {COMPRESSORS}: Grooves: 4
  • {COMPRESSORS}: Mounting Hole Quantity: 4
  • {COMPRESSORS}: Pulley Groove Quantity: 4
  • {COMPRESSORS}: Distance From Clutch To Mounting Fl: 72.5
  • {COMPRESSORS}: Discharge Port Inside Diameter: 8
  • {ACCUMULATORS/DRIERS}: Width (mm): 87.5
  • {COMPRESSORS}: Rotation: A Direction
  • {COMPRESSORS}: Voltage: DC 12V
  • {COMPRESSORS}: Hub Type: DENSO
  • {COMPRESSORS}: Compressor Mount: EAR MOUNT
  • {COMPRESSORS}: Refrigerant: HFC-134A
  • {COMPRESSORS}: Refrigerant Type: HFC-134A
  • {COMPRESSORS}: Connector Gender: Male
  • {COMPRESSORS}: Switch Included: No
  • {COMPRESSORS}: Oil Filled: PAG 46
  • {COMPRESSORS}: Compatible Refrigerant Oil Type: PAG-180
  • {EXP VALVES/ORIF TUBE}: Material Type: Plastic
  • {COMPRESSORS}: Connector Shape: Round
  • {ACCUMULATORS/DRIERS}: Inlet Type: Sealing Washer
  • {ACCUMULATORS/DRIERS}: Outlet Fitting: Sealing Washer
  • {COMPRESSORS}: Pulley Belt Type: Serpentine
  • {COMPRESSORS}: Terminal Type: Spade
  • {COMPRESSORS}: Mounting Type: Tangent
  • {COMPRESSORS}: Clutch Included: Yes
