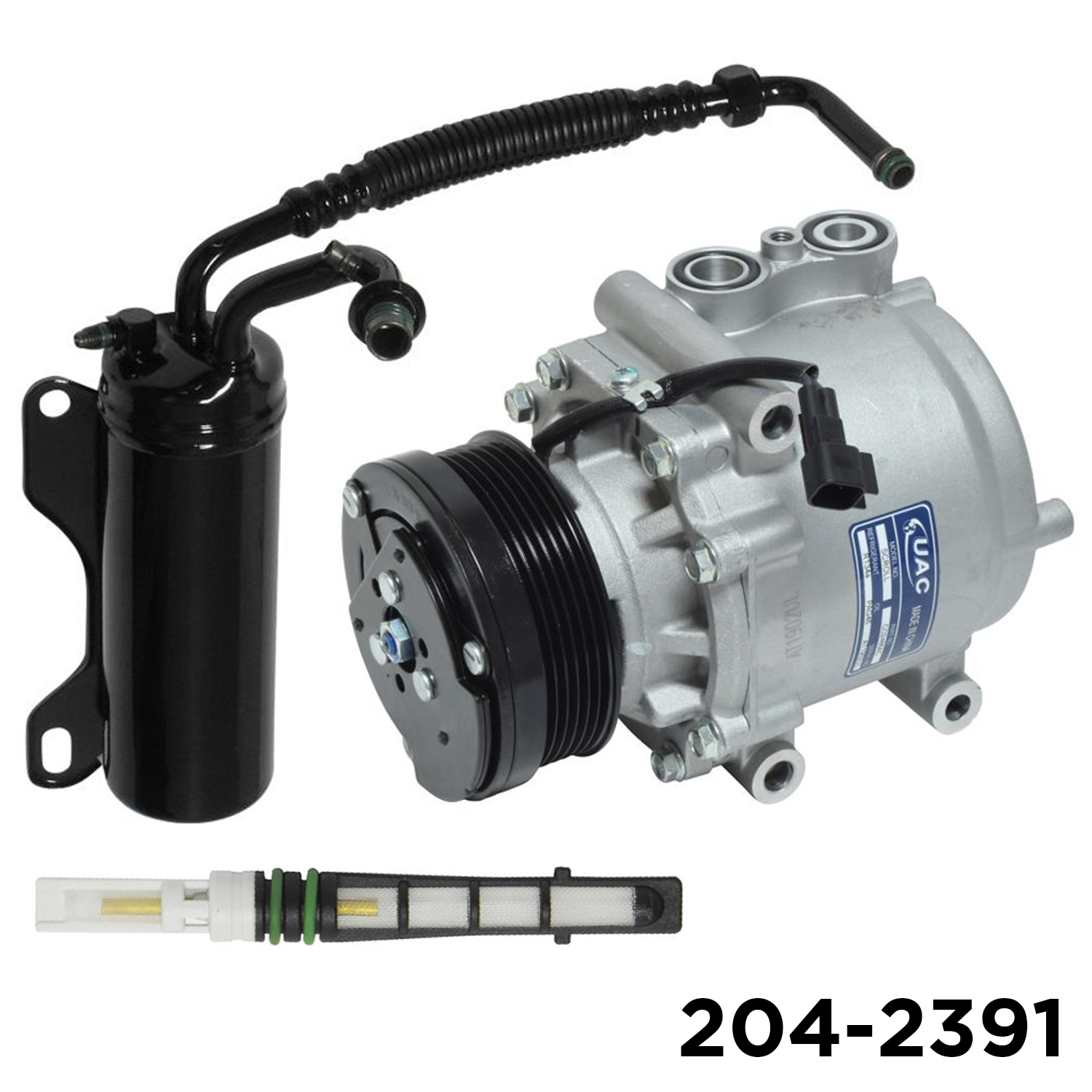

Short Compressor Kit

Specs

Specifications

• KIT: COMPRESSORS: 204-1582
• KIT: HOSE/TUBE ASSY (+ACCUM-DRIER): 207-7007
• KIT: EXP VALVES/ORIF TUBE: 208-431-1
• {COMPRESSORS}: Casing Outside Diameter
• {COMPRESSORS}: Clutch Maximum Diameter
• {COMPRESSORS}: Wire Gauge Measurement
• {COMPRESSORS}: Mounting Flange Thickness
• {COMPRESSORS}: Pulley Lip Diameter
• {COMPRESSORS}: Switch Type
• {COMPRESSORS}: Wire Qty: 1
• {COMPRESSORS}: Connector Quantity: 1
• {COMPRESSORS}: Pulley Ridge Diameter: 100
• {COMPRESSORS}: Distance From Clutch To Mounting Fl: 106
• {COMPRESSORS}: Pulley Outside Diameter: 106
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Switch Port Size: 12
• {COMPRESSORS}: Coil Clock Position: 12
• {COMPRESSORS}: Coil Voltage: 12
• {COMPRESSORS}: Discharge Port Inside Diameter: 13.5
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Outlet (mm): 14.5
• {COMPRESSORS}: Suction Port Inside Diameter: 16.5
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Inlet (mm): 18
• {COMPRESSORS}: Terminal Qty: 2
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Height (mm): 280
• {COMPRESSORS}: Mounting Hole Quantity: 6
• {COMPRESSORS}: Pulley Groove Quantity: 6
• {COMPRESSORS}: Distance Between Mounting Holes: 68.5
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Diameter (mm): 89
• {COMPRESSORS}: Rotation: CW
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Refrigerant: HFC134a
• {COMPRESSORS}: Hub Type: Leaf Spring
• {COMPRESSORS}: Connector Gender: Male
• {COMPRESSORS}: Switch Included: No
• {COMPRESSORS}: Switch Service Port: No
• {COMPRESSORS}: Thermal Or Non Thermal: non thermal
• {COMPRESSORS}: Compatible Refrigerant Oil Type: PAG 46
• {COMPRESSORS}: Refrigerant Type: R134A
• {COMPRESSORS}: Pulley Belt Type: Serpentine
• {COMPRESSORS}: Terminal Type: Spade
• {COMPRESSORS}: Connector Shape: square
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Material Type: Steel
• {COMPRESSORS}: Mounting Type: Tangent
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Service Port (Y/ : Y
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Switch Port (Y/ N: Y
• {COMPRESSORS}: Clutch Included: Yes
• {COMPRESSORS}: Oil Filled: Yes
