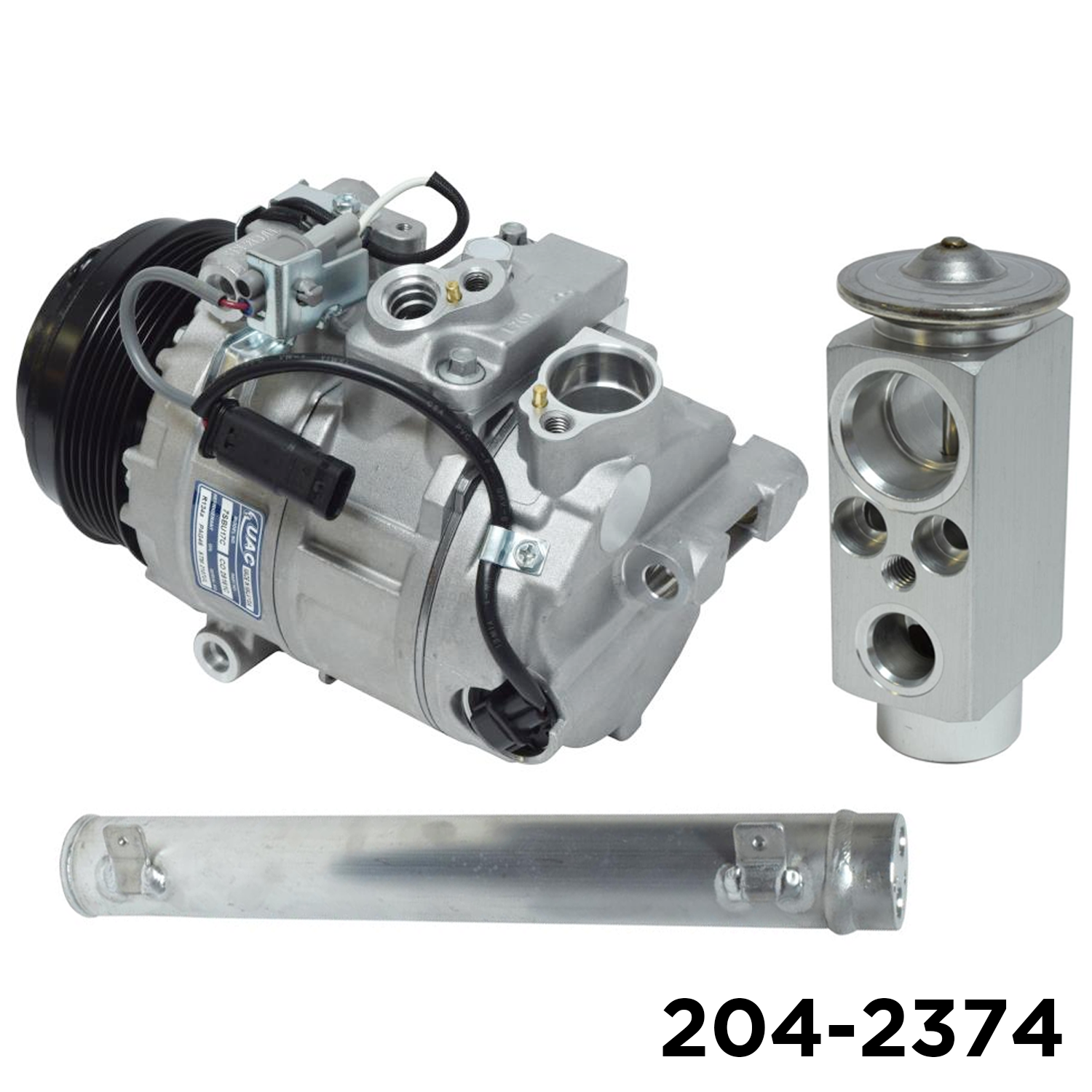

Short Compressor Kit

Specs

Specifications

• KIT: COMPRESSORS: 204-13856
• KIT: ACCUMULATORS/DRIERS: 207-5395
• KIT: EXP VALVES/ORIF TUBE: 208-5048
• {EXP VALVES/ORIF TUBE}: Max Operating Pressure: .55+.035
• {EXP VALVES/ORIF TUBE}: Tonnage: 1.5
• {COMPRESSORS}: Pulley Diameter (mm): 108
• {EXP VALVES/ORIF TUBE}: Liquid Inlet (mm): 11
• {COMPRESSORS}: Voltage: 12
• {ACCUMULATORS/DRIERS}: Inlet (mm): 14
• {EXP VALVES/ORIF TUBE}: Liquid Outlet (mm): 14
• {COMPRESSORS}: Discharge Port (mm): 17
• {EXP VALVES/ORIF TUBE}: Suction Outlet (mm): 18
• {EXP VALVES/ORIF TUBE}: Suction Inlet (mm): 20
• {COMPRESSORS}: Gauge Line (mm): 27
• {COMPRESSORS}: Suction Port (mm): 28
• {ACCUMULATORS/DRIERS}: Height (mm): 360
• {EXP VALVES/ORIF TUBE}: Superheat: 4
• {ACCUMULATORS/DRIERS}: Width (mm): 45
• {COMPRESSORS}: Grooves: 6
• {COMPRESSORS}: Compressor Type: 7SBU17C
• {COMPRESSORS}: Diode (Y/ N): N
• {ACCUMULATORS/DRIERS}: Inlet Type: OR
• {ACCUMULATORS/DRIERS}: Outlet Fitting: OR
• {COMPRESSORS}: Control Valve (Y/ N): Y
