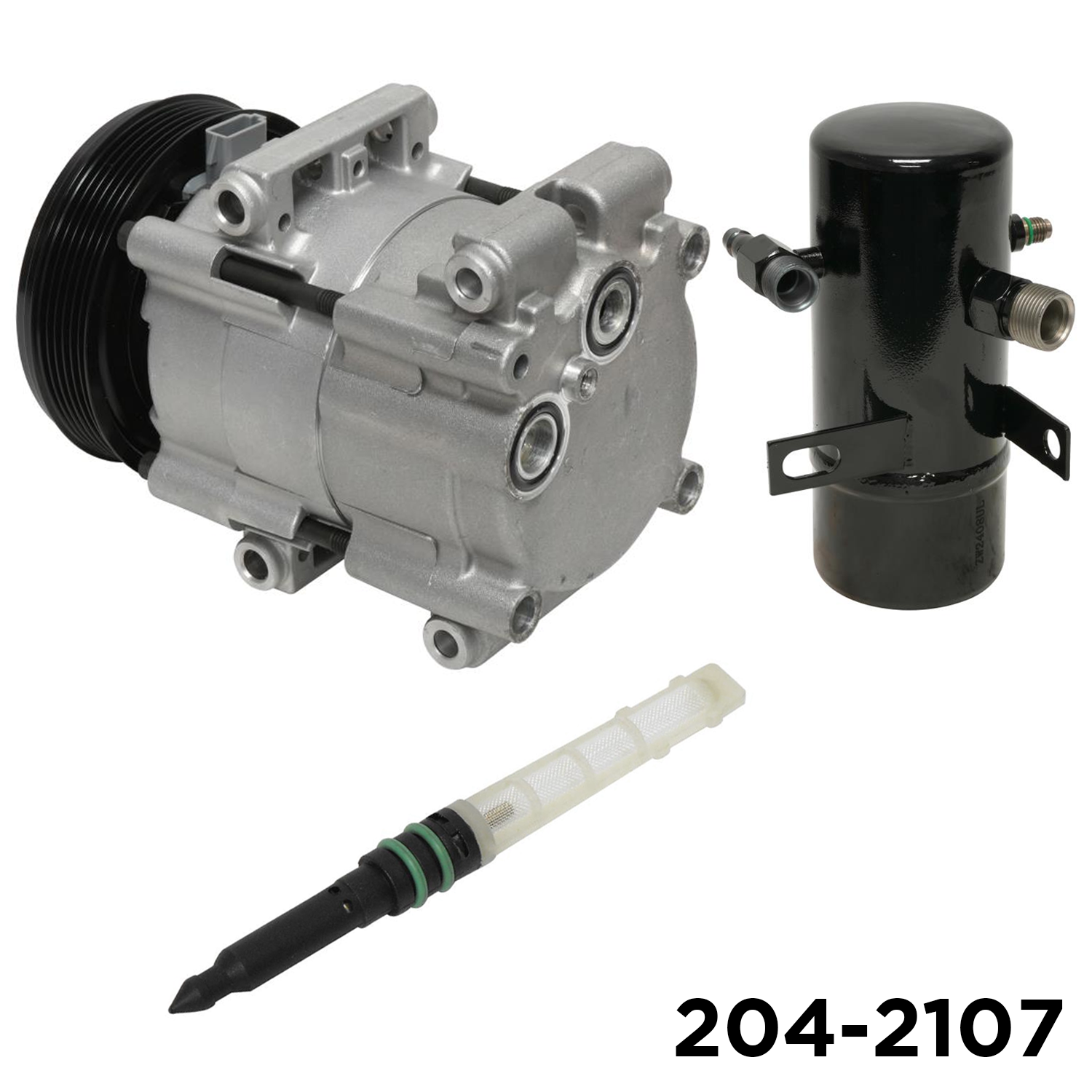

Short Compressor Kit

Specs

Specifications

• KIT: COMPRESSORS: 204-735
• KIT: ACCUMULATORS/DRIERS: 207-855
• KIT: EXP VALVES/ORIF TUBE: 208-291-1
• {ACCUMULATORS/DRIERS}: Outlet Thread Size: 1 1/16 X 14UNF
• {EXP VALVES/ORIF TUBE}: Screen Micron Rating: 100 mesh
• {EXP VALVES/ORIF TUBE}: Length (mm): 102
• {COMPRESSORS}: Voltage: 12
• {COMPRESSORS}: Pulley Diameter (mm): 126
• {ACCUMULATORS/DRIERS}: Inlet (mm): 15.875
• {ACCUMULATORS/DRIERS}: Outlet (mm): 19
• {ACCUMULATORS/DRIERS}: Length (mm): 215
• {COMPRESSORS}: Belt Width (mm): 22
• {COMPRESSORS}: Grooves: 6
• {EXP VALVES/ORIF TUBE}: Inner Diameter (mm): 6.2
• {COMPRESSORS}: Mounting Distance (mm): 62
• {ACCUMULATORS/DRIERS}: Diameter (mm): 88
• {EXP VALVES/ORIF TUBE}: Diameter (mm): 9.8
• {EXP VALVES/ORIF TUBE}: Tube Outside Diameter: 9.8
• {EXP VALVES/ORIF TUBE}: Color: Black
• {COMPRESSORS}: Compressor Type: FS10
• {ACCUMULATORS/DRIERS}: Service Port Thread Size: M12 X 1.5
• {ACCUMULATORS/DRIERS}: Inlet Thread Size: M8 x 1.0
• {ACCUMULATORS/DRIERS}: Inlet Type: Male Insert O-Ring
• {ACCUMULATORS/DRIERS}: Outlet Type: Male Insert O-Ring
• {EXP VALVES/ORIF TUBE}: Material Type: Plastic
• {ACCUMULATORS/DRIERS}: Refrigerant: R134A
• {ACCUMULATORS/DRIERS}: Material Type: Steel
• {ACCUMULATORS/DRIERS}: Service Port (Y/ N): Y
