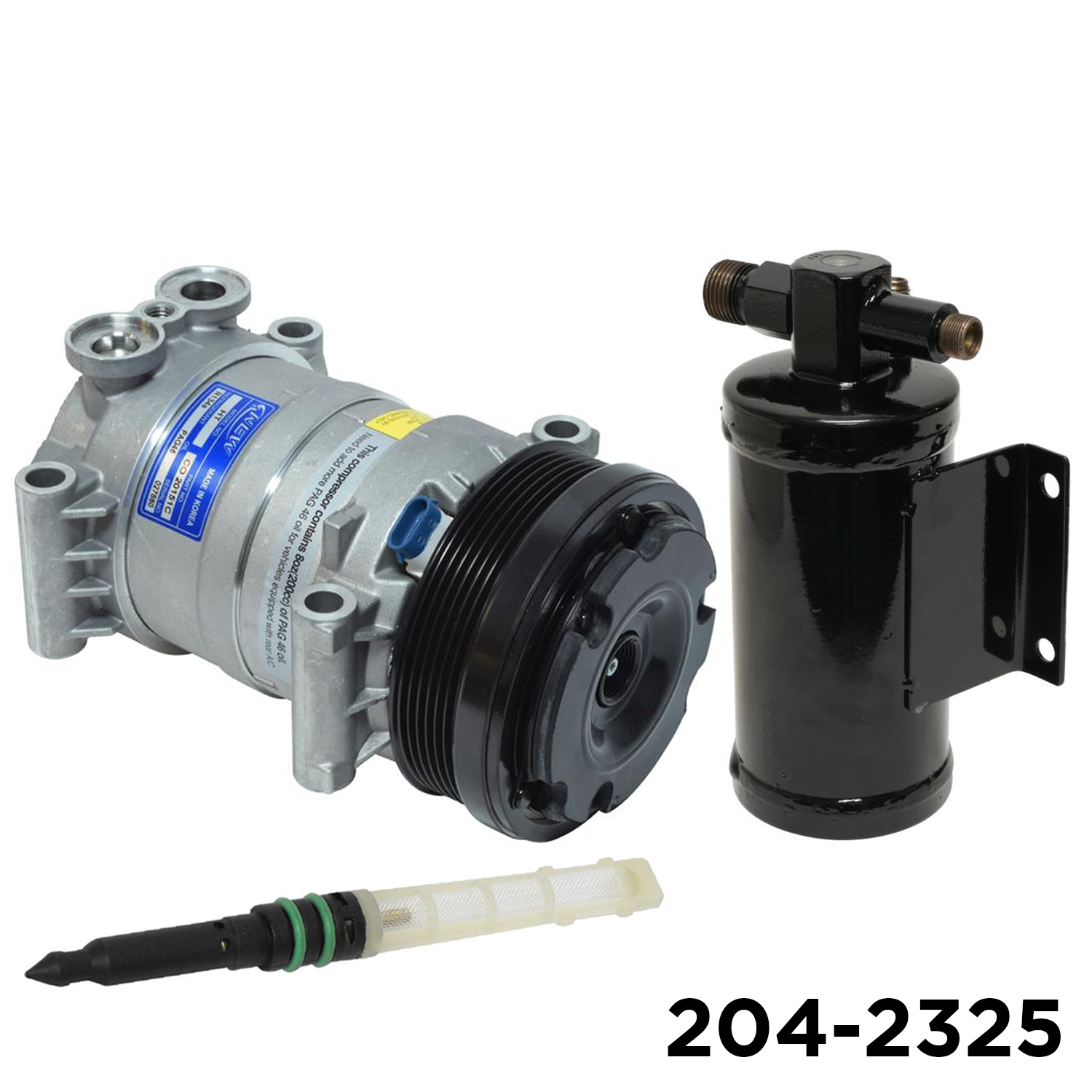

Short Compressor Kit

Specs

Specifications

• KIT: COMPRESSORS: 204-936
• KIT: ACCUMULATORS/DRIERS: 207-962
• KIT: EXP VALVES/ORIF TUBE: 208-291-1
• {COMPRESSORS}: Connector Quantity: 1
• {EXP VALVES/ORIF TUBE}: Screen Micron Rating: 100 mesh
• {EXP VALVES/ORIF TUBE}: Length (mm): 102
• {COMPRESSORS}: Mounting Hole Diameter: 11
• {COMPRESSORS}: Coil Clock Position: 12
• {COMPRESSORS}: Coil Voltage: 12
• {COMPRESSORS}: Distance Between Mounting Holes: 122
• {COMPRESSORS}: Pulley Ridge Diameter: 125
• {COMPRESSORS}: Clutch Maximum Diameter: 127
• {COMPRESSORS}: Pulley Outside Diameter: 131.2
• {COMPRESSORS}: Discharge Port Inside Diameter: 16
• {ACCUMULATORS/DRIERS}: Length (mm): 165
• {COMPRESSORS}: Terminal Qty: 2
• {COMPRESSORS}: Suction Port Inside Diameter: 30.5
• {COMPRESSORS}: Pulley Groove Quantity: 6
• {EXP VALVES/ORIF TUBE}: Inner Diameter (mm): 6.2
• {ACCUMULATORS/DRIERS}: Outer Diameter (mm): 63
• {COMPRESSORS}: Distance From Clutch To Mounting Fl: 72
• {COMPRESSORS}: Mounting Hole Quantity: 8
• {ACCUMULATORS/DRIERS}: Inlet/ Outlet (mm): 9
• {EXP VALVES/ORIF TUBE}: Diameter (mm): 9.8
• {EXP VALVES/ORIF TUBE}: Tube Outside Diameter: 9.8
• {EXP VALVES/ORIF TUBE}: Color: Black
• {COMPRESSORS}: Hub Type: DENSO
• {COMPRESSORS}: Connector Gender: Female
• {COMPRESSORS}: Compressor Type: HT6
• {COMPRESSORS}: Switch Included: No
• {COMPRESSORS}: Thermal Or Non Thermal: non thermal
• {COMPRESSORS}: Connector Shape: Oval
• {COMPRESSORS}: Compatible Refrigerant Oil Type: PAG 46
• {COMPRESSORS}: Terminal Type: Pin
• {EXP VALVES/ORIF TUBE}: Material Type: Plastic
• {COMPRESSORS}: Refrigerant Type: R134A
• {COMPRESSORS}: Pulley Belt Type: Serpentine
• {COMPRESSORS}: Mounting Type: Tangent
• {COMPRESSORS}: Clutch Included: Yes
• {COMPRESSORS}: Oil Filled: Yes
• {COMPRESSORS}: Switch Service Port: Yes
