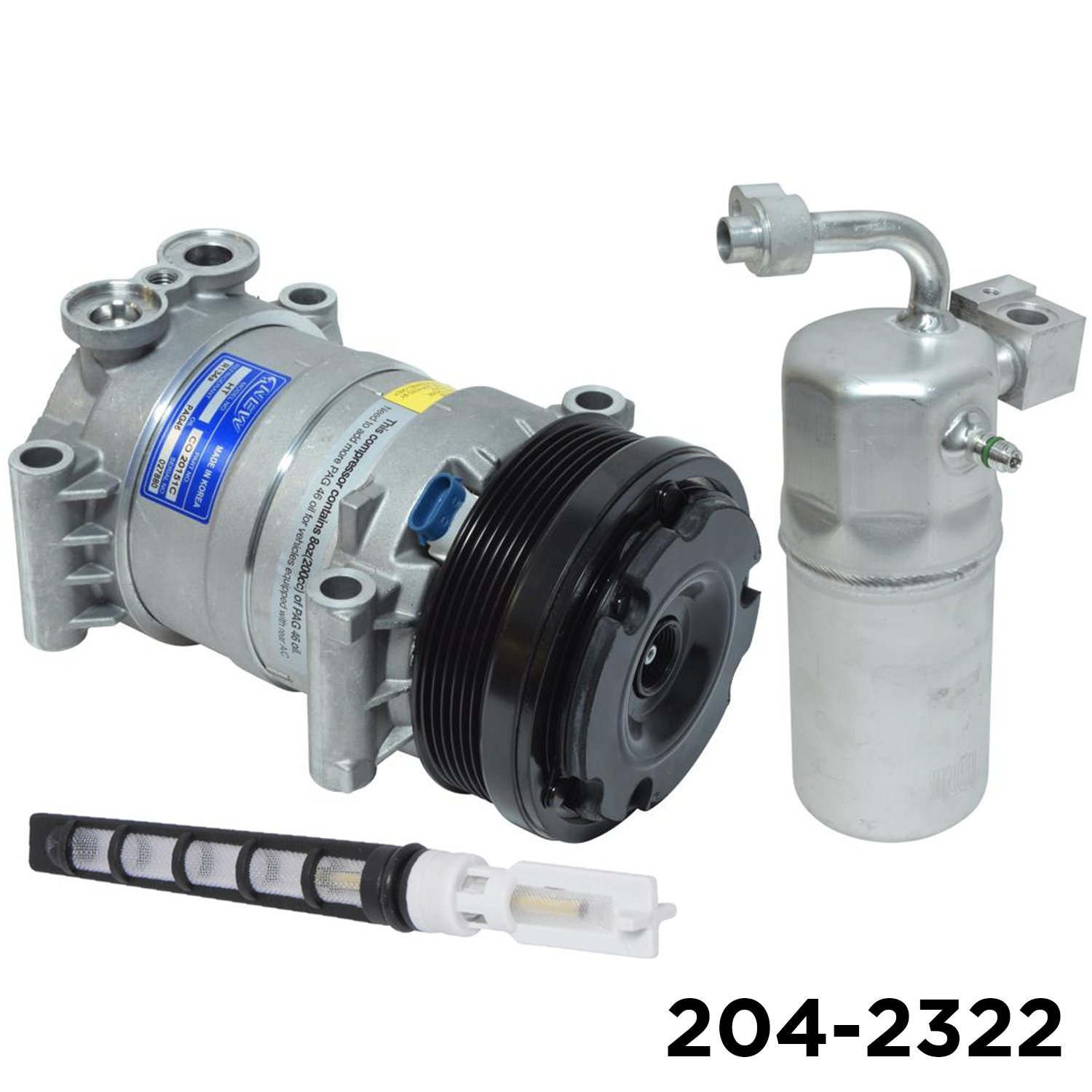

Short Compressor Kit

$333.58

SKU: 204-2322 Category:


Additional information

Weight 21 lbs
Dimensions 19 × 13 × 16 in

Specs

Specifications

  • KIT: COMPRESSORS: 204-936
  • KIT: ACCUMULATORS/DRIERS: 207-1219
  • KIT: EXP VALVES/ORIF TUBE: 208-692-1
  • {COMPRESSORS}: Connector Quantity: 1
  • {COMPRESSORS}: Mounting Hole Diameter: 11
  • {COMPRESSORS}: Coil Clock Position: 12
  • {COMPRESSORS}: Coil Voltage: 12
  • {EXP VALVES/ORIF TUBE}: Screen Micron Rating: 120
  • {COMPRESSORS}: Distance Between Mounting Holes: 122
  • {COMPRESSORS}: Pulley Ridge Diameter: 125
  • {COMPRESSORS}: Clutch Maximum Diameter: 127
  • {COMPRESSORS}: Pulley Outside Diameter: 131.2
  • {COMPRESSORS}: Discharge Port Inside Diameter: 16
  • {ACCUMULATORS/DRIERS}: Inlet/ Outlet (mm): 18
  • {COMPRESSORS}: Terminal Qty: 2
  • {ACCUMULATORS/DRIERS}: Length (mm): 230
  • {COMPRESSORS}: Suction Port Inside Diameter: 30.5
  • {COMPRESSORS}: Pulley Groove Quantity: 6
  • {EXP VALVES/ORIF TUBE}: Inner Diameter (mm): 7.3
  • {COMPRESSORS}: Distance From Clutch To Mounting Fl: 72
  • {COMPRESSORS}: Mounting Hole Quantity: 8
  • {EXP VALVES/ORIF TUBE}: Diameter (mm): 9.6
  • {EXP VALVES/ORIF TUBE}: Tube Outside Diameter: 9.8
  • {ACCUMULATORS/DRIERS}: Diameter (mm): 90
  • {EXP VALVES/ORIF TUBE}: Length (mm): 91
  • {EXP VALVES/ORIF TUBE}: Color: Black
  • {COMPRESSORS}: Hub Type: DENSO
  • {COMPRESSORS}: Connector Gender: Female
  • {COMPRESSORS}: Compressor Type: HT6
  • {COMPRESSORS}: Switch Included: No
  • {COMPRESSORS}: Thermal Or Non Thermal: non thermal
  • {COMPRESSORS}: Connector Shape: Oval
  • {COMPRESSORS}: Compatible Refrigerant Oil Type: PAG 46
  • {COMPRESSORS}: Terminal Type: Pin
  • {EXP VALVES/ORIF TUBE}: Material Type: plastic/ cloth
  • {EXP VALVES/ORIF TUBE}: Refrigerant Type: R12;R134A
  • {COMPRESSORS}: Refrigerant Type: R134A
  • {COMPRESSORS}: Pulley Belt Type: Serpentine
  • {COMPRESSORS}: Mounting Type: Tangent
  • {COMPRESSORS}: Clutch Included: Yes
  • {COMPRESSORS}: Oil Filled: Yes
  • {COMPRESSORS}: Switch Service Port: Yes
