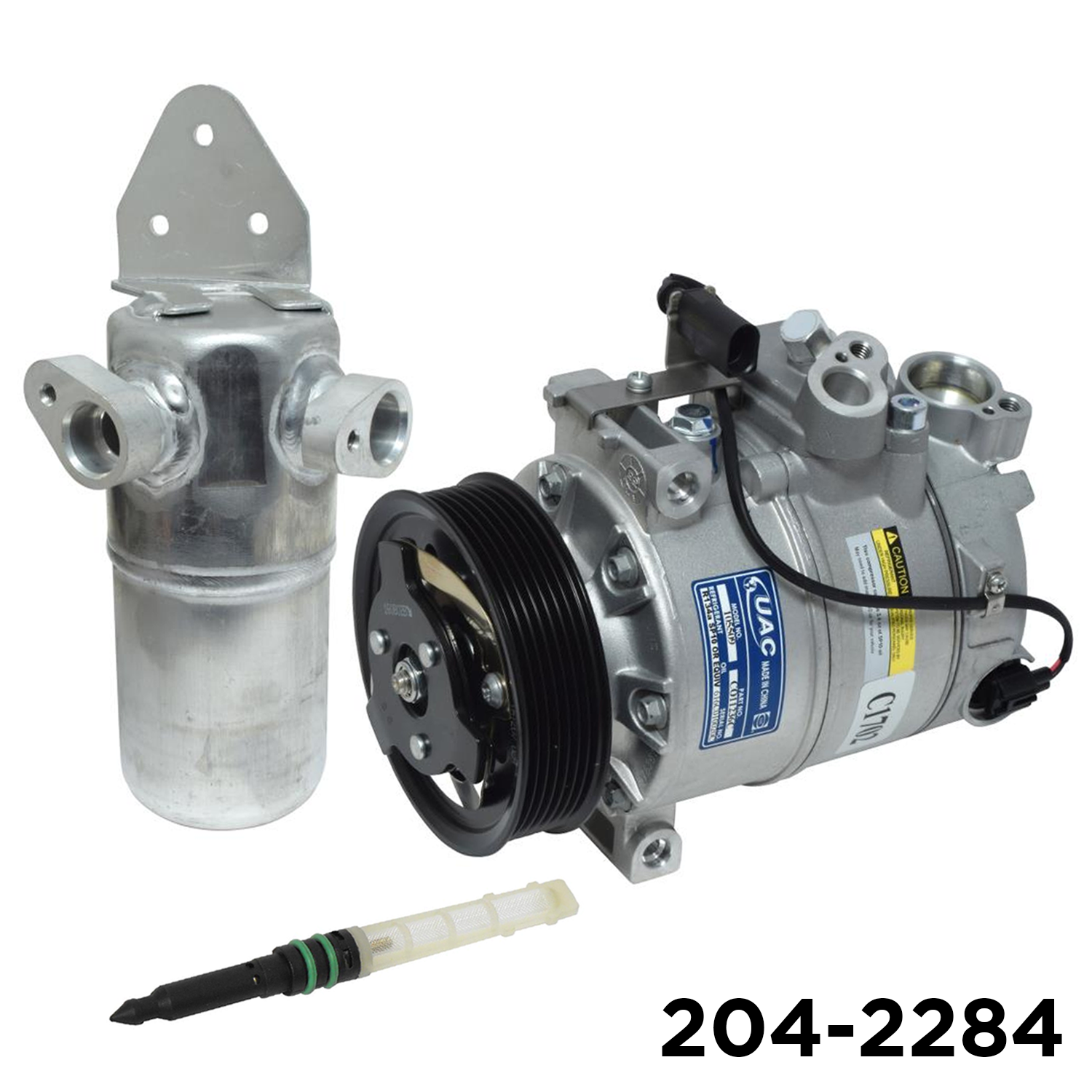

Short Compressor Kit

Specs

Specifications

• KIT: COMPRESSORS: 204-14237
• KIT: ACCUMULATORS/DRIERS: 207-5177
• KIT: EXP VALVES/ORIF TUBE: 208-291-1
• {EXP VALVES/ORIF TUBE}: Screen Micron Rating: 100 mesh
• {EXP VALVES/ORIF TUBE}: Length (mm): 102
• {COMPRESSORS}: Pulley Diameter (mm): 115
• {COMPRESSORS}: Clocking: 12
• {COMPRESSORS}: Voltage: 12
• {COMPRESSORS}: Discharge Port (mm): 15.5
• {ACCUMULATORS/DRIERS}: Height (mm): 180
• {ACCUMULATORS/DRIERS}: Inlet (mm): 20.5
• {COMPRESSORS}: Suction Port (mm): 28
• {COMPRESSORS}: Gauge Line (mm): 52
• {EXP VALVES/ORIF TUBE}: Inner Diameter (mm): 6.2
• {COMPRESSORS}: Grooves: 7
• {ACCUMULATORS/DRIERS}: Width (mm): 75.5
• {COMPRESSORS}: Compressor Type: 7SEU16C
• {EXP VALVES/ORIF TUBE}: Diameter (mm): 9.8
• {EXP VALVES/ORIF TUBE}: Tube Outside Diameter: 9.8
• {EXP VALVES/ORIF TUBE}: Color: Black
• {COMPRESSORS}: Diode (Y/ N): N
• {ACCUMULATORS/DRIERS}: Inlet Type: OR
• {ACCUMULATORS/DRIERS}: Outlet Fitting: OR
• {EXP VALVES/ORIF TUBE}: Material Type: Plastic
• {COMPRESSORS}: Compressor Mount: Tangent
• {COMPRESSORS}: Control Valve (Y/ N): Y
