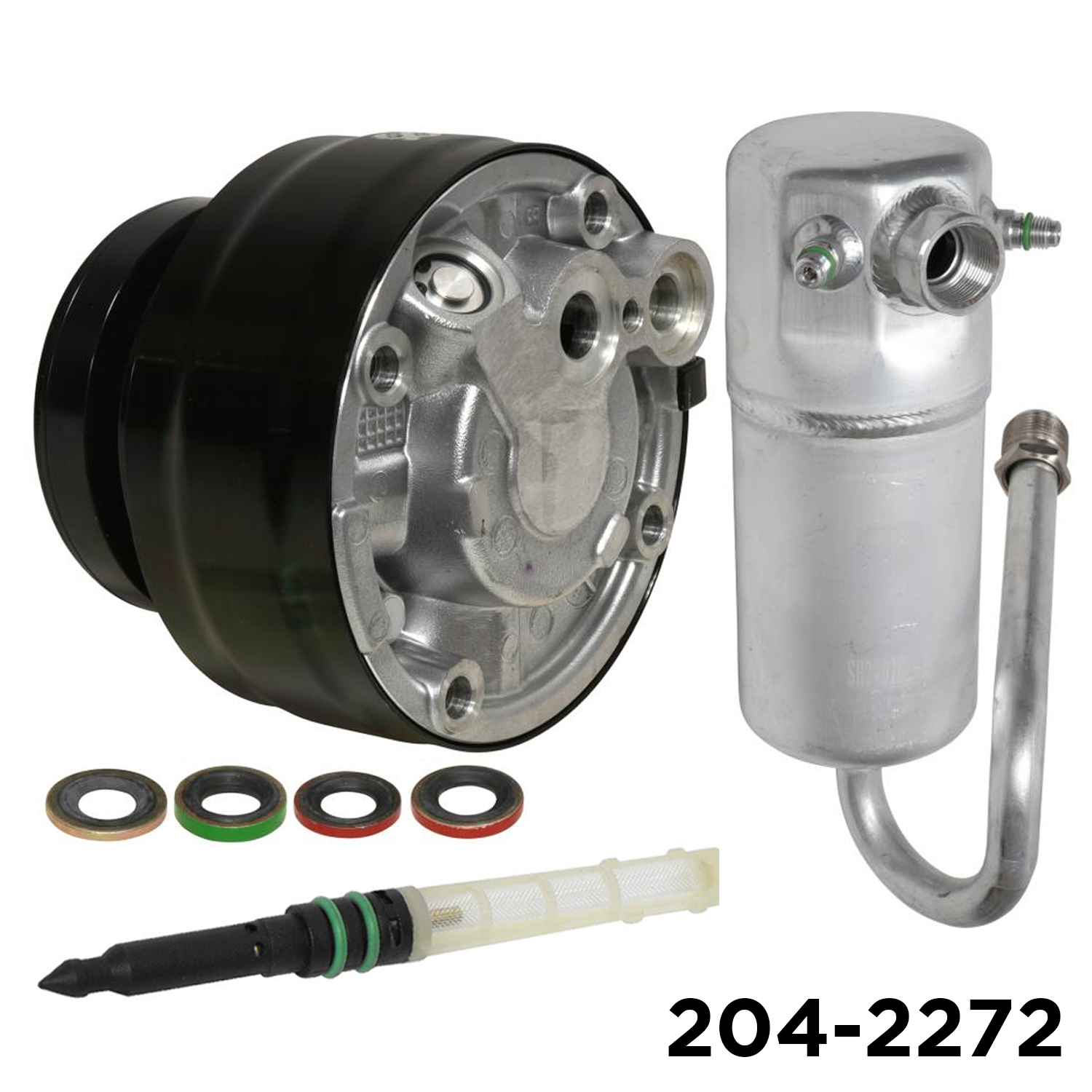

Short Compressor Kit

$514.70

SKU: 204-2272 Category:


Additional information

Weight 21 lbs
Dimensions 19 × 13 × 16 in

Specs

Specifications

  • KIT: COMPRESSORS: 204-14227
  • KIT: ACCUMULATORS/DRIERS: 207-5494
  • KIT: EXP VALVES/ORIF TUBE: 208-291-1
  • {COMPRESSORS}: Grooves: 1
  • {EXP VALVES/ORIF TUBE}: Screen Micron Rating: 100 mesh
  • {EXP VALVES/ORIF TUBE}: Length (mm): 102
  • {COMPRESSORS}: Voltage: 12
  • {COMPRESSORS}: Pulley Diameter (mm): 130
  • {COMPRESSORS}: Suction Port (mm): 19
  • {ACCUMULATORS/DRIERS}: Inlet/ Outlet (mm): 19.5
  • {ACCUMULATORS/DRIERS}: Height (mm): 225
  • {EXP VALVES/ORIF TUBE}: Inner Diameter (mm): 6.2
  • {ACCUMULATORS/DRIERS}: Diameter (mm): 89
  • {COMPRESSORS}: Clocking: 9
  • {EXP VALVES/ORIF TUBE}: Diameter (mm): 9.8
  • {EXP VALVES/ORIF TUBE}: Tube Outside Diameter: 9.8
  • {EXP VALVES/ORIF TUBE}: Color: Black
  • {EXP VALVES/ORIF TUBE}: Material Type: Plastic
  • {COMPRESSORS}: Compressor Type: R4
