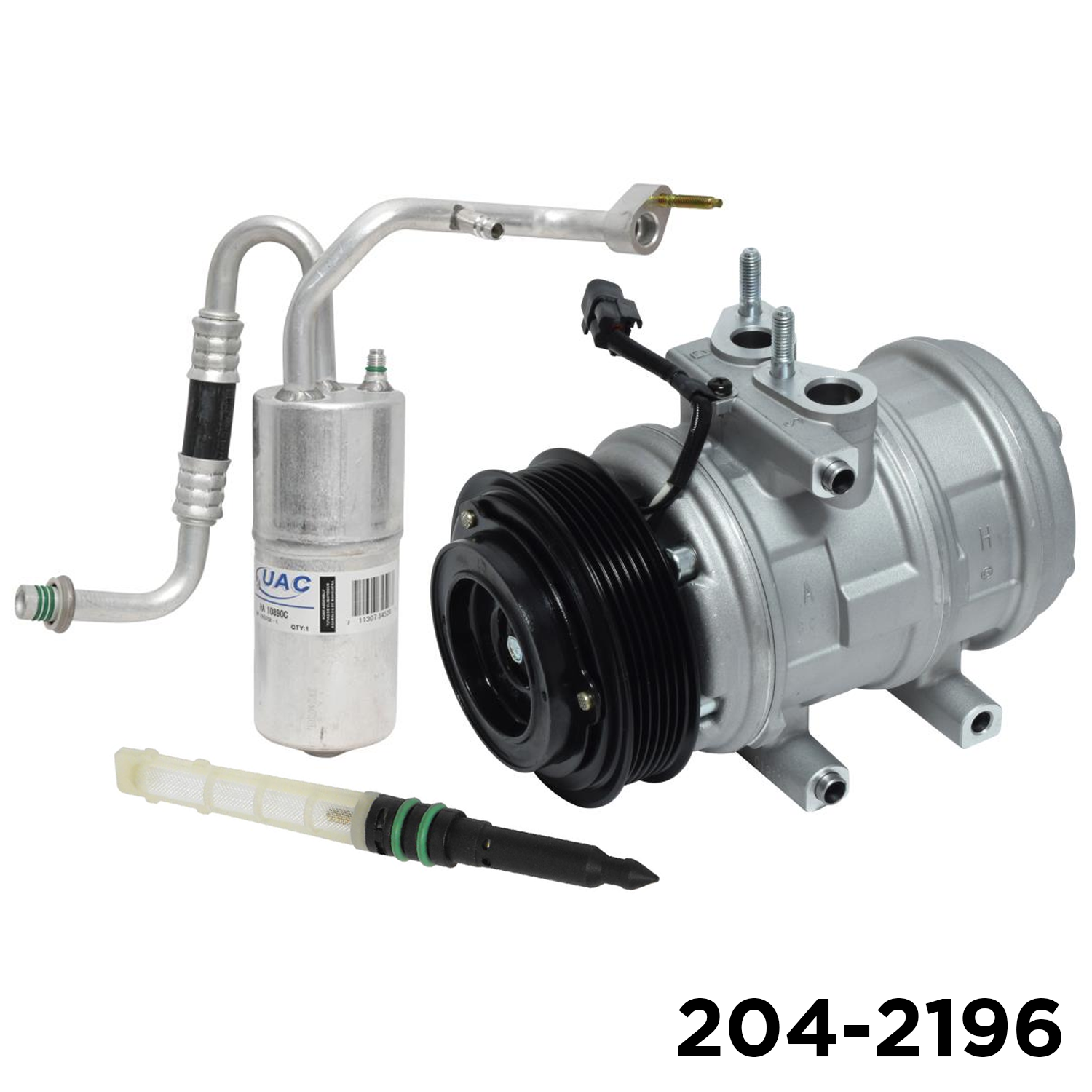

Short Compressor Kit

Specs

Specifications

• KIT: COMPRESSORS: 204-2035
• KIT: HOSE/TUBE ASSY (+ACCUM-DRIER): 207-2019
• KIT: EXP VALVES/ORIF TUBE: 208-291-1
• {COMPRESSORS}: Connector Quantity: 1
• {EXP VALVES/ORIF TUBE}: Screen Micron Rating: 100 mesh
• {EXP VALVES/ORIF TUBE}: Length (mm): 102
• {COMPRESSORS}: Clutch Maximum Diameter: 104.5
• {COMPRESSORS}: Pulley Ridge Diameter: 114.97
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Switch Port Size: 12
• {COMPRESSORS}: Coil Clock Position: 12
• {COMPRESSORS}: Coil Voltage: 12
• {COMPRESSORS}: Pulley Outside Diameter: 121
• {COMPRESSORS}: Casing Outside Diameter: 128
• {COMPRESSORS}: Discharge Port Inside Diameter: 15.5
• {COMPRESSORS}: Suction Port Inside Diameter: 18.3
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Inlet/ Outlet (mm: 19
• {COMPRESSORS}: Mounting Flange Thickness: 19.33
• {COMPRESSORS}: Terminal Qty: 2
• {COMPRESSORS}: Wire Qty: 2
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Length (mm): 228
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Diameter (mm): 3.5
• {COMPRESSORS}: Mounting Hole Quantity: 6
• {COMPRESSORS}: Pulley Groove Quantity: 6
• {EXP VALVES/ORIF TUBE}: Inner Diameter (mm): 6.2
• {COMPRESSORS}: Distance Between Mounting Holes: 68.65
• {EXP VALVES/ORIF TUBE}: Diameter (mm): 9.8
• {EXP VALVES/ORIF TUBE}: Tube Outside Diameter: 9.8
• {COMPRESSORS}: Distance From Clutch To Mounting Fl: 95
• {EXP VALVES/ORIF TUBE}: Color: Black
• {COMPRESSORS}: Hub Type: DENSO
• {COMPRESSORS}: Connector Gender: Female
• {COMPRESSORS}: Compressor Type: FS20
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Outlet Type: Male Spring Lock
• {COMPRESSORS}: Switch Included: No
• {COMPRESSORS}: Thermal Or Non Thermal: non thermal
• {COMPRESSORS}: Compatible Refrigerant Oil Type: pag46
• {COMPRESSORS}: Terminal Type: Pin
• {EXP VALVES/ORIF TUBE}: Material Type: Plastic
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Inlet Type: pnut
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Refrigerant: R134A
• {COMPRESSORS}: Refrigerant Type: R134A
• {COMPRESSORS}: Pulley Belt Type: Serpentine
• {COMPRESSORS}: Connector Shape: square
• {COMPRESSORS}: Mounting Type: Tangent
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Service Port (Y/ : Y
• {HOSE/TUBE ASSY (+ACCUM-DRIER)}: Switch Port (Y/ N: Y
• {COMPRESSORS}: Clutch Included: Yes
• {COMPRESSORS}: Oil Filled: Yes
• {COMPRESSORS}: Switch Service Port: Yes
