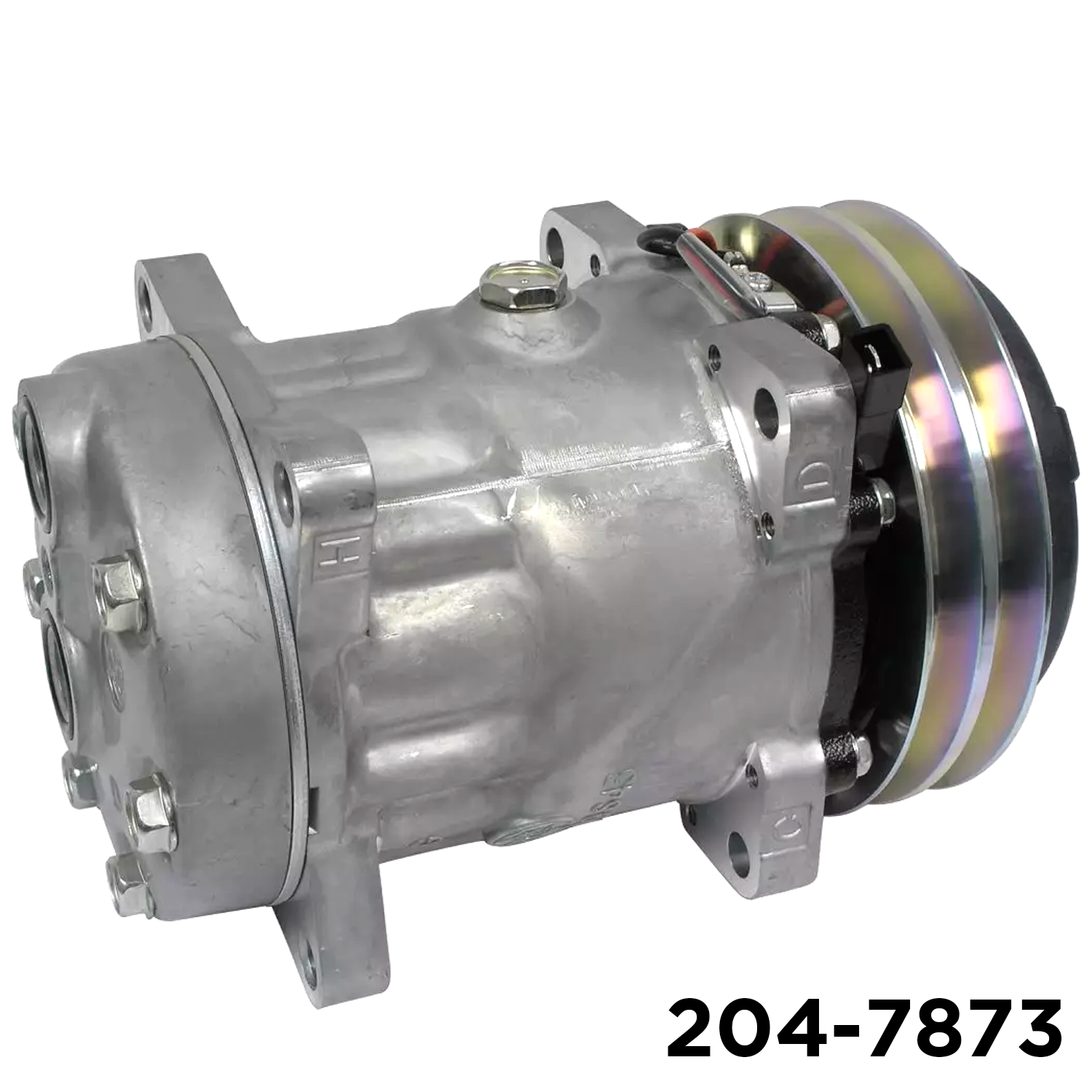

SD7H15 AC Compressor (2 Groove, 12V) For Massey Fergusson
Upgrade the cooling efficiency of your heavy-duty agricultural equipment with this premium SD7H15 Style AC Compressor (Part # 204-7873). Stocked locally at Air Components Manufacturing in Mesa, Arizona, this compressor is built to withstand the rigorous demands of farming and industrial environments.
Designed as a direct replacement for specific Sanden models and Massey Ferguson applications, this unit features a robust “Super Heavy Duty” (SHD) ear mount configuration and a 2-groove clutch pulley. Pre-filled with oil and designed for R134a systems, it ensures reliable performance during the hottest Arizona summers.
Features & Benefits
- Heavy Duty Construction: Features an SHD (Super Heavy Duty) ear mount style for maximum stability and vibration resistance.
- High Capacity: 155cc displacement ensures rapid cooling even in large cabins.
- Ready to Install: Comes with a 1-Wire AMP Spade connector and 190cc of oil pre-loaded.
- System Compatibility: Designed for R134a refrigerant systems with O-Ring style head ports.
Technical Specifications
Below are the detailed specifications for Part # 204-7873:
| Compressor Type | SD7H15 |
| Voltage | 12 Volts |
| Grooves | 2 |
| Pulley Diameter | 140 mm |
| Clutch Rotation | CW (Clockwise) |
| Refrigerant | R134a |
| Mount Type | Ear Mount (SHD) |
| Ear ID | 83.3 mm |
| Cylinder Head | QC |
| Port Style | O-Ring (Horizontal Angle) |
| Connector Type | 1 Wire AMP Spade (#180916-5 w/ Spade #42460-2) |
| Displacement | 155 cc |
| Oil Quantity | 190 cc |
| Gauge Line (First/End) | 23.8 mm / 39.55 mm |
Fitment & Compatibility
This compressor is engineered to fit the following applications and serves as a replacement for these OEM/Manufacturer part numbers:
- Massey Ferguson: Various Models (Universal/Any)
- Sanden Models: 7952, 8088 (7751-8000 & 8001-8250 Series)
Need help confirming fitment? Contact the experts at Air Components Manufacturing in Mesa, AZ. We can help verify if Part # 204-7873 is the correct match for your tractor or heavy equipment.
