Description

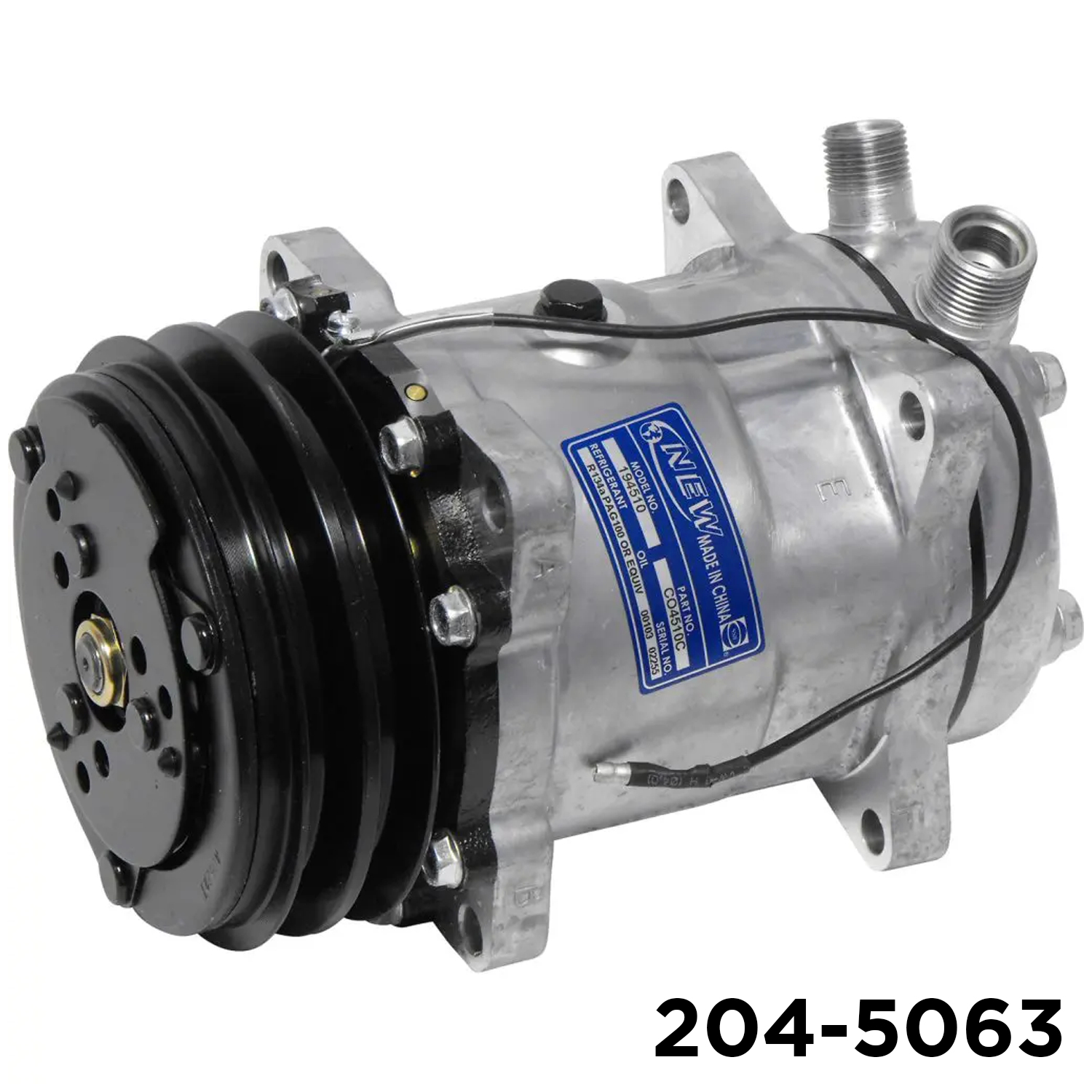

Sanden SD5H14 Style AC Compressor (2 Groove) – Part # 204-5063
Ensure reliable cooling for your fleet with our heavy-duty Sanden SD5H14 Style AC Compressor (Part # 204-5063). Stocked at Air Components Manufacturing in Mesa, Arizona, this compressor is a direct replacement for the “Super Heavy Duty” (SHD) units found in various Volvo, Freightliner, and Mack vocational trucks.
This 5-piston compressor is built to withstand the punishing vibrations of construction and refuse applications. It features a robust 2-groove clutch pulley and the standard “Ear Mount” configuration. Whether you are servicing a Volvo WI concrete mixer or a Freightliner chassis, this unit offers the durability and performance needed to keep the cabin comfortable in the Arizona heat.
Features & Benefits
- Heavy Duty Build: Designed as a “Super Heavy Duty” replacement to handle high-stress vocational environments.
- Universal Style Mount: Features standard Ear Mounts for easy bolt-on installation in compatible brackets.
- High Efficiency: The SD5H14 internal design provides excellent cooling performance at low and high RPMs.
- Service Ready: Comes with a standard 1-Wire Bullet connector and vertical O-ring ports for quick hookup.
Technical Specifications
Compare the specifications below to your original equipment (Part # 204-5063):
| Part Number | 204-5063 |
| Compressor Model | SD5H14 (SD508 Style) |
| Voltage | 12 Volts |
| Grooves | 2 (V-Belt) |
| Pulley Diameter | 132 mm (5.20″) |
| Mount Type | Ear Mount |
| Head Type | FL (Vertical O-Ring) |
| Fitting Size | 3/4″ x 16 (Suction) / 7/8″ x 14 (Discharge) |
| Refrigerant | R134a |
Fitment & Compatibility
This compressor is used in a variety of heavy-duty truck applications, including:
- Volvo Trucks: WI Series (1996-1998)
- Freightliner: MCL Chassis (2011, 2014)
- Mack: GU8 Series (2012-2014)
- Cross Reference Numbers: Sanden 4509, 4510, 6664, 4510SAN, UAC CO 4510C, MEI 54510.
Installation Note: Always check the oil level prior to installation. While some compressors ship with oil, it is best practice to drain and measure the correct amount of PAG oil for your specific system capacity. Need PAG oil or flush solvent? We have it all at Air Components Manufacturing in Mesa.
