Liquid Line w/ Orifice Tube



Discounted Wholesale Pricing Available For Eligible Businesses.
Register Here!
SKU: 247-5022 Category:

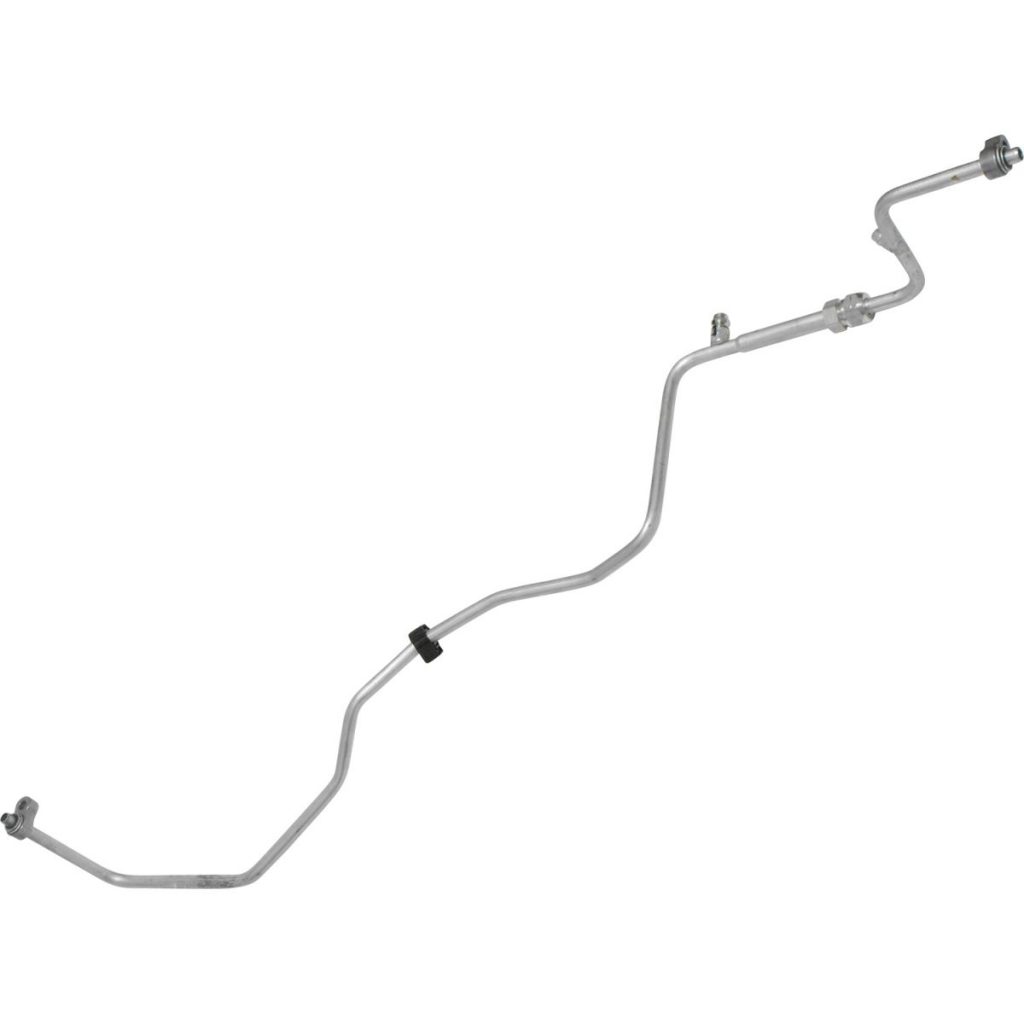

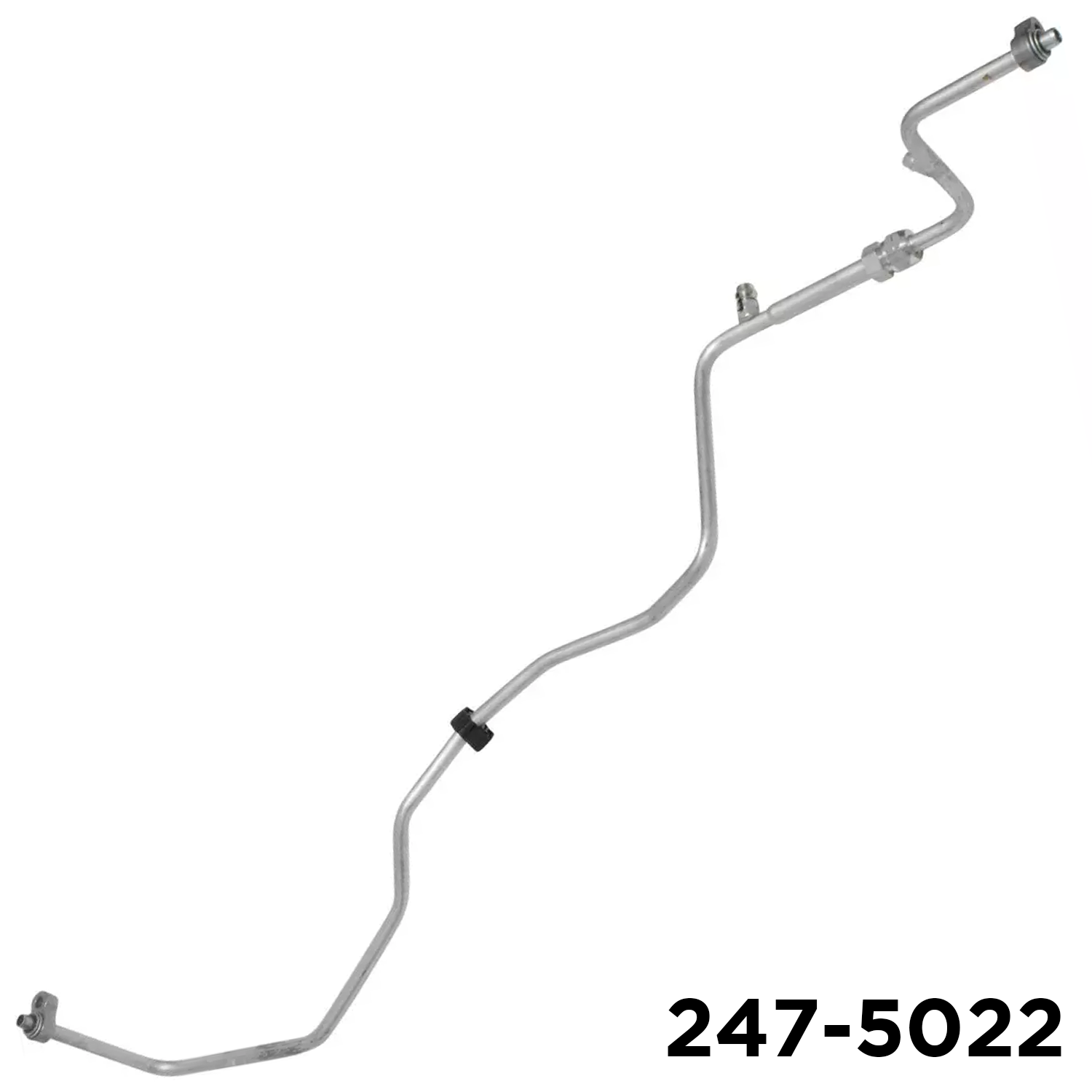

The 247-5022 is a top-of-the-line Liquid Line Hose Assembly complete with a Serviceable Orifice Tube, tailored specifically for optimal performance with automotive air conditioning systems. This assembly is crucial for efficient system functioning and is designed with application-specific needs in mind, ensuring a perfect fit for a broad range of vehicles.

Constructed from high-quality aluminum, this hose assembly features a double wall barrier hose compatible with both R134A and R12 refrigerants, enhancing its versatility and reliability. The crimp fitting connections are robust, guaranteeing a secure link without leaks. Each hose is equipped with essential gaskets, o-rings, or seals, ensuring that the product can be installed correctly with all necessary components included.

Key Benefits:

  • Contains all necessary components for installation, including fittings, gaskets, and seals.
  • Constructed with durable, double wall barrier hose compatible with major refrigerants.
  • Application-specific design guarantees an exact fit for your vehicle.
  • Enhances the air conditioning system’s efficiency and performance.

Product Attributes:

  • Refrigerant Type: R134a
  • Fittings: Included
  • Material: Aluminum
  • Switch Service Port: Without switch port
  • Bracket: Without bracket
  • Liquid Line Style: P-Nut Fitting
  • Orifice Tube: Included, serviceable
  • Service Ports: Includes high and low side, with R134a Quick Disconnect type
  • OEM Replacement: Yes

Overall, the 247-5022 hose assembly provides a reliable and durable solution for maintaining or upgrading your vehicle’s air conditioning system, ensuring comfort and efficiency with every drive.

Cross Reference

  • UAC # HA111368C
  • AC Delco # 1533436
  • General Motors # 15785056
  • Global Parts Distributors # 4811883
  • Omega # 3464407
  • Trad Automotive # H6997

Additional information

Weight 3.836 lbs
Dimensions 42.4409 × 27.5591 × 10.1575 in

Cross Overs

UAC HA 111368C
AC Delco 1533436
Advance Auto Parts 1533436
General Motors 5733436A
General Motors 15785056
Global Parts Distributors 4811883
Omega 3464407
Oreilly Auto Parts 1533436
Ranshu 5733436
Ranshu 5733436GM
