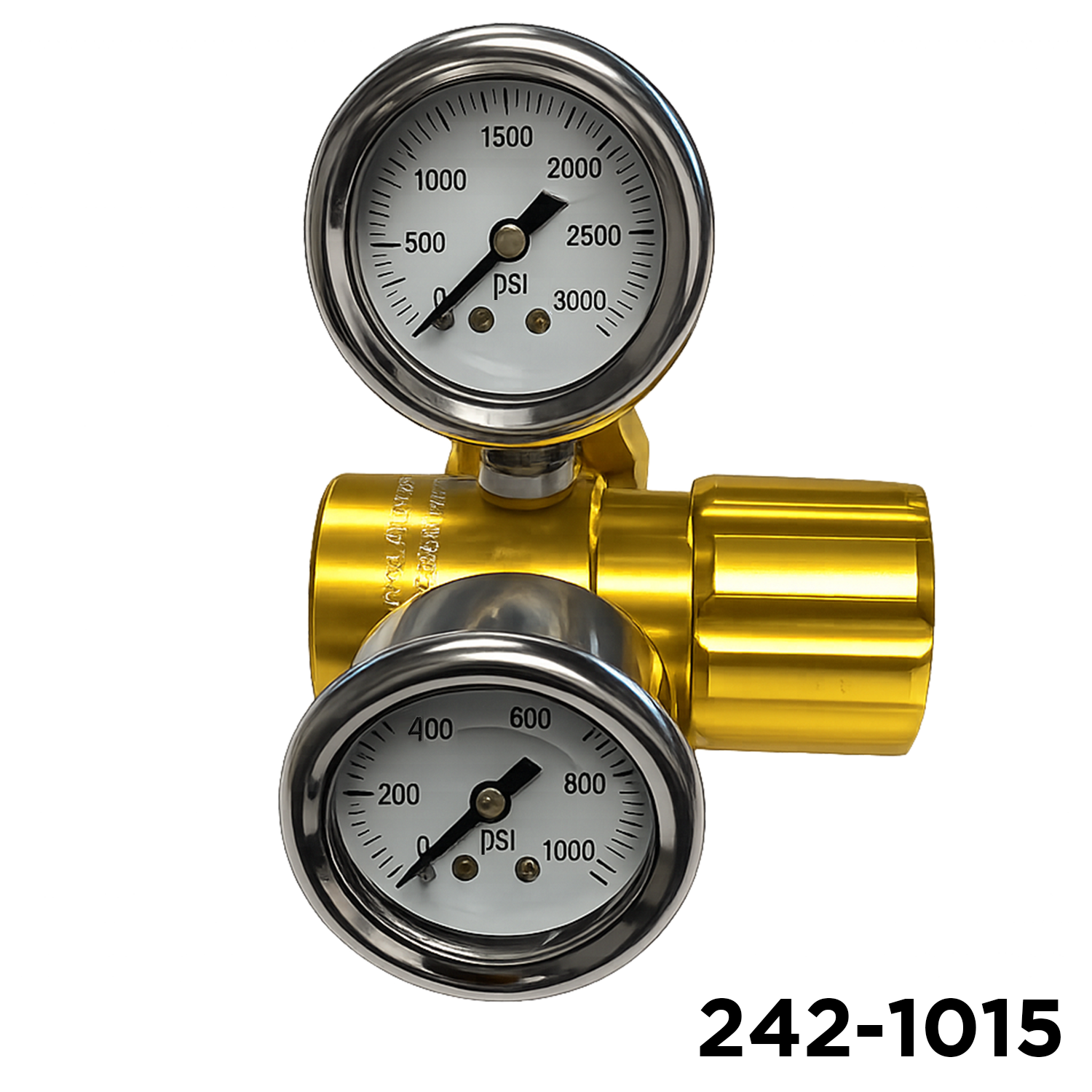

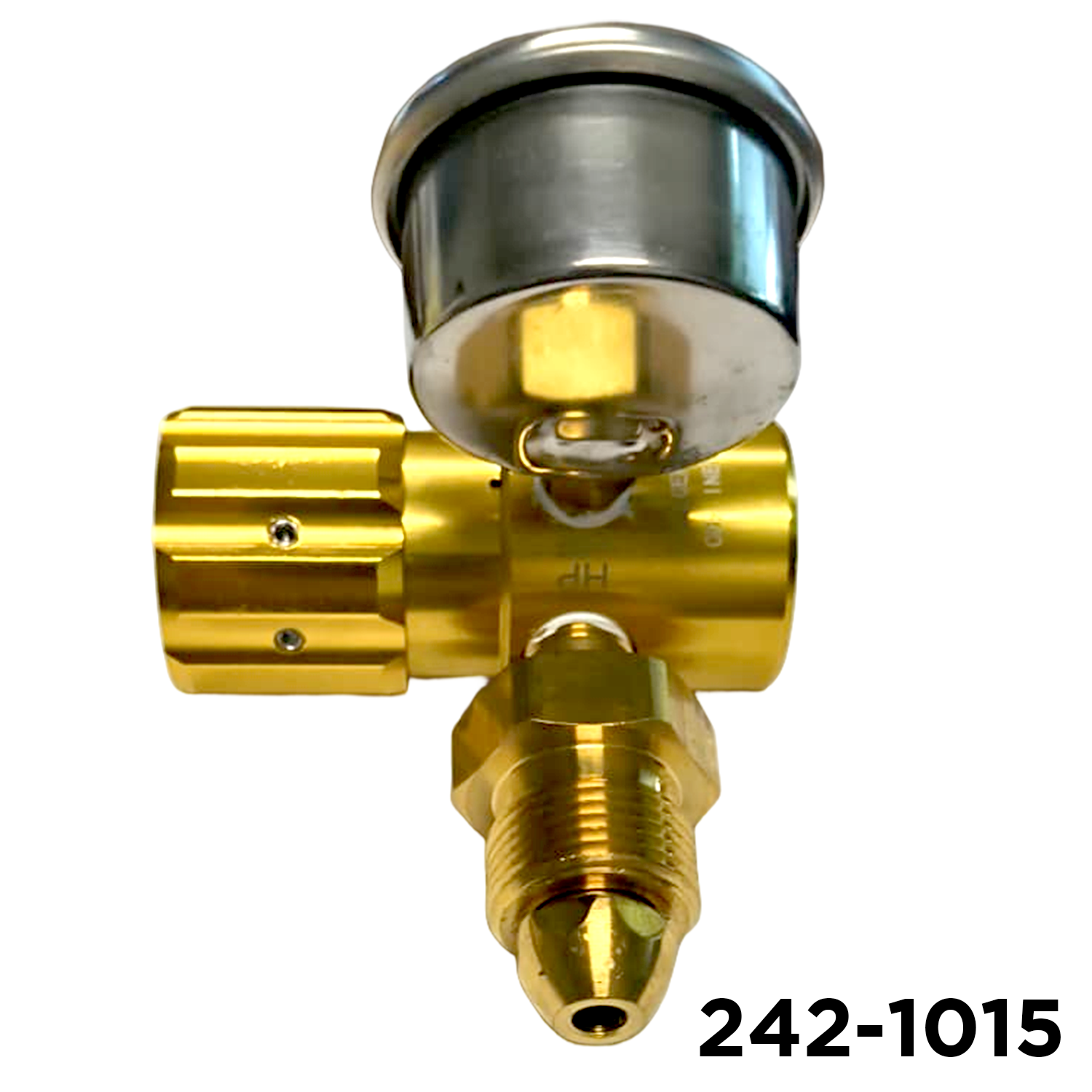

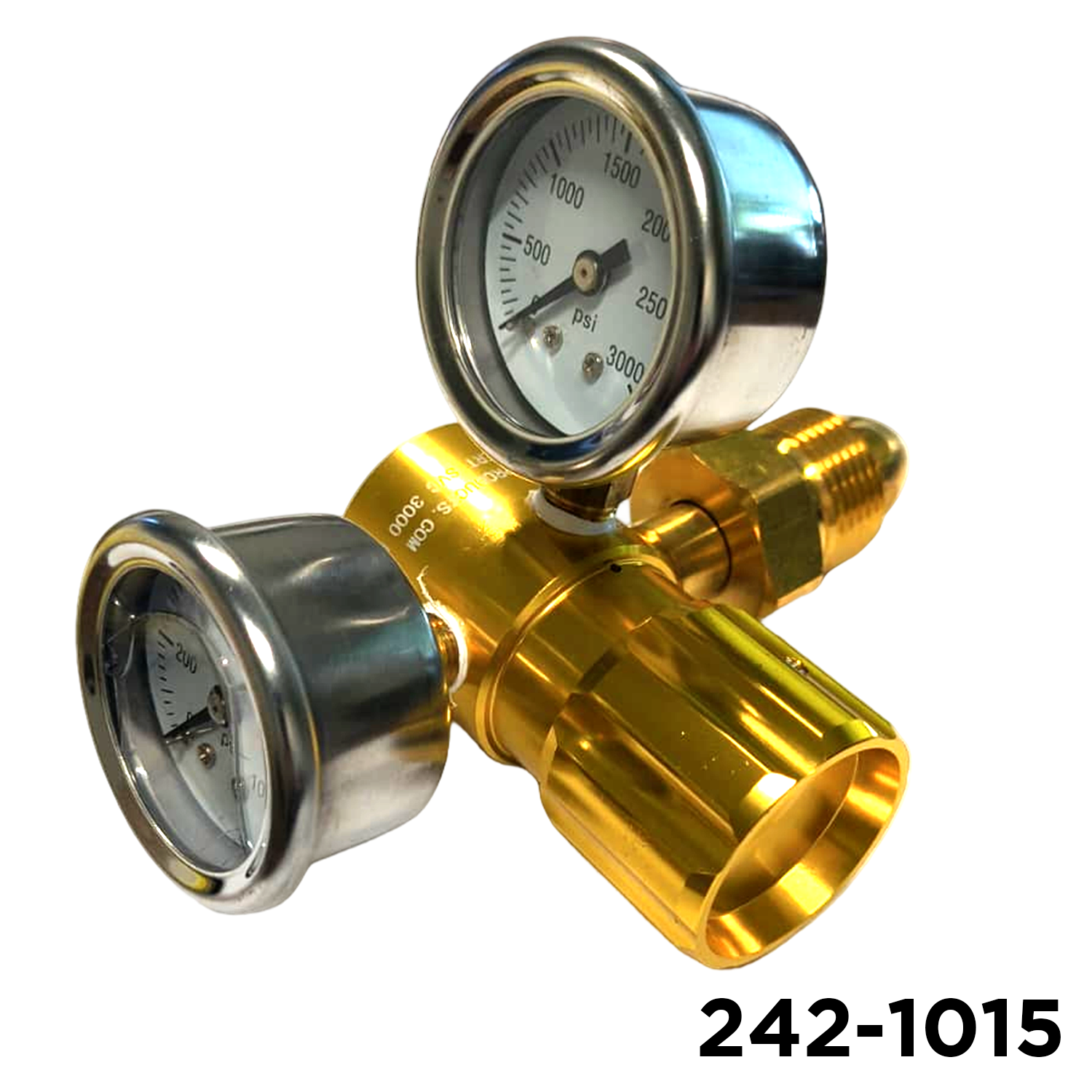

Air Components Air Source High Performance Nitrogen, Argon & Helium Regulator 0-600 PSI Dual Gauges CGA 580 Cylinder Connection
Air Components Air Source High Performance Nitrogen, Argon & Helium Regulator 0-600 PSI Dual Gauges CGA 580 Cylinder Connection
Air Components Air Source High Performance Nitrogen, Argon & Helium Regulator 0-600 PSI Dual Gauges CGA 580 Cylinder Connection


Air Components Air Source High Performance Nitrogen, Argon & Helium Regulator 0-600 PSI Dual Gauges CGA 580 Cylinder Connection

$169.83

  • SPECIAL PURPOSE SUPER HIGH FLOW DUAL GAUGE CO2 REGULATORThis high performance regulator utilizes the Series 3000 high flow adjustable regulator with dual gauges can be used for many high pressure Co2 gas applications such as industrial gases, race cars, hvac and plumbing. High flow up to 600 PSI and 45CFM can deliver high volume for many applications.
SKU: 242-1015 Categories: , , , , Tag:


Description

Specifications:

  • Designed for Nitogen, Argon & Helium
  • High flow capacity
  • 45CFM (cubic feet per minute)
  • Non-freezing under normal conditions
  • Self venting
  • Adjustable 0-400 PSI
  • CGA 580 Tank Connection
  • Soft seal washer included
  • Light weight aluminum body with anodized finish
  • Brass tank connection
  • 1/4″ FNPT outlet – Be sure all downstream accessories can handle 400 PSI maximum pressure
  • Chrome cased gauges

WARNING: although regulator is adjustable from 0-400 PSI All accessories connected to the outlet MUST be designed for 400 PSI WORKING PRESSURE. FAILURE to use correct components can result in product failure and personal injury. Gas expands with increased temperature.

Additional information

Weight 4.95 lbs
Dimensions 15.9 × 9.6 × 2.7 in
